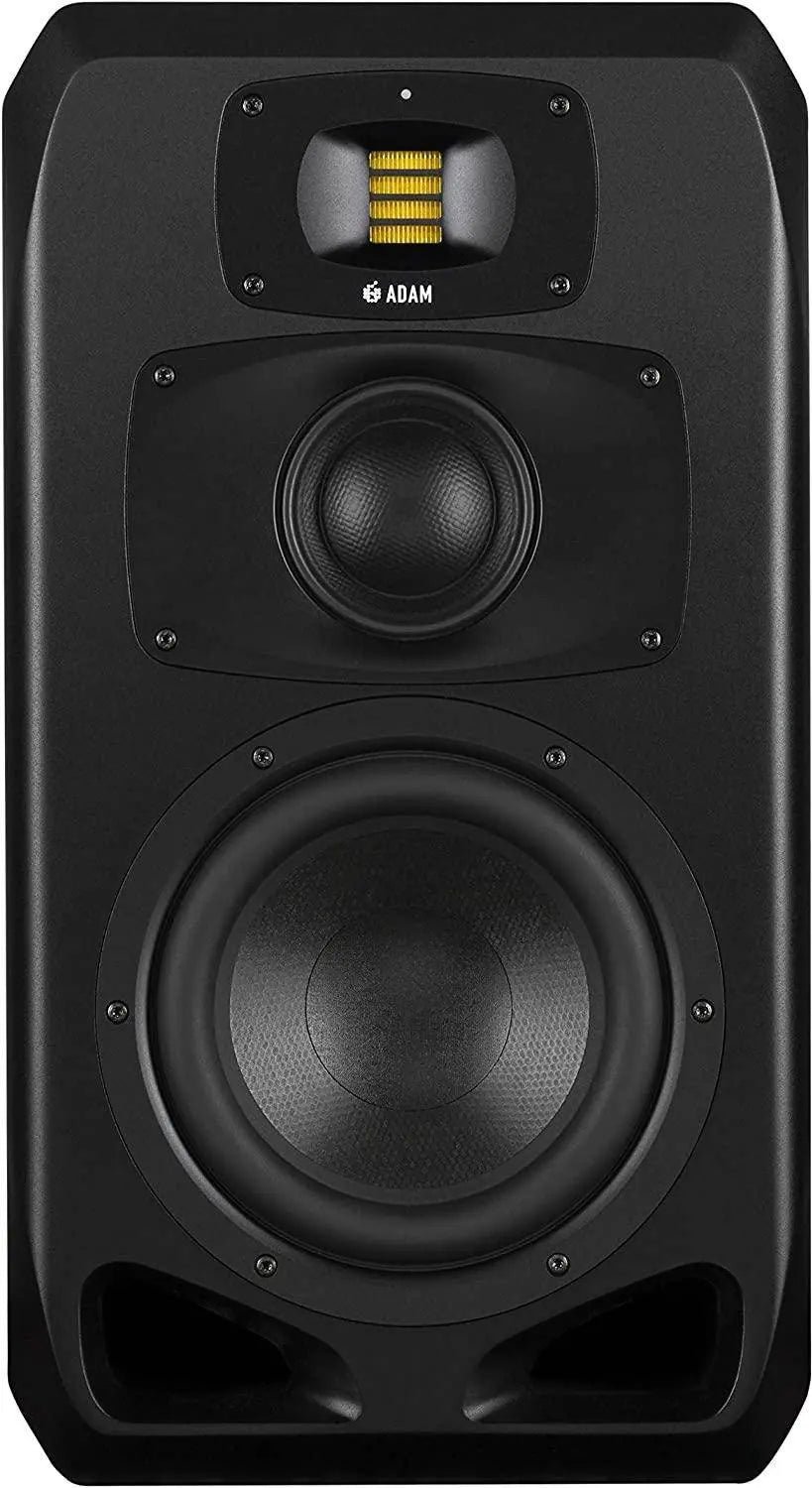

Adam Audio S3v Active 3 Way Midfield Monitor
star
star
star
star
star
(10 Reviews)
In Stock
₹480,000.00
₹481,900.00
check_circle
In Stock
visibility
651 people are viewing this right now
Shipping calculated at checkout.
Only 5 item(s) left in stock
check_circle
Product Description
check_circle
Features German made Precision S-ART Tweeter with HPS Waveguide.
check_circle
4" Dome / Cone Hybrid (Carbon Composite).
check_circle
An innovatively designed 9†Extended Linear Excursion (ELE) bass driver.
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Features German made Precision S-ART Tweeter with HPS Waveguide.
- 4" Dome / Cone Hybrid (Carbon Composite).
- An innovatively designed 9†Extended Linear Excursion (ELE) bass driver.
- Class D amplification for the bass and mid-range drivers, at 500 watts and 300 watts RMS.
| IN THE BOX | |
|---|---|
| Sales Package | Speaker and User documentation |
| General | |
|---|---|
| Brand | Adam-Audio |
| Model | S3V |
| Color | black |
| Specifications | |
|---|---|
|
WOOFER
|
Number: 1
Basket Ø: 9“ (223 mm)
Voice Coil Ø: 2" (50 mm)
Cone Material: HexaCone
|
|
MID-RANGE
|
Number: 1
Type: Dome / Cone Hybrid
Basket Ø: 4" (100 mm)
Voice Coil Ø: 2.4" (60 mm)
Cone Material: Carbon Composite
|
|
TWEETER
|
Number: 1
Type: S-ART
Diaphragm Area: 4 inch² (2420 mm²)
Equiv. Diaphragm Ø: 2" (56 mm)
Velocity Transform Ratio: 4:1
Diaphragm Weight: 0.17 g
Waveguide: HPS
|
|
BUILT-IN AMPLIFIERS
|
Number: 3
Woofer: 1
Type: PWM
Amp. Power RMS: 500 W
Mid-range: 1
Type: PWM
Amp. Power RMS: 300 W
Tweeter: 1
Type: A/B
Amp. Power RMS: 50 W
|
|
CONTROL OPTIONS
|
Input Sensitivity: Adjustable
Parametric EQs: 6
Room Compensation High-Shelf EQ: 1
Room Compensation Low-Shelf EQ: 1
Preset Memories: 5
Delay: 0 ms to 5 ms
|
|
INPUT CONNECTORS
|
Analog: XLR
Input Impedance: 48 kOhm
Max. Input Level: +24 dBu
Digital: AES3
|
|
GENERAL
|
Panel: Rear
Frequency Response: 32 Hz - 50 kHz
THD > 100 Hz: ≤0.4 %
Max. SPL per pair at 1 m: ≥124 dB
Crossover Frequencies: 250 Hz / 3 kHz
Max. Power Consumption: 550 W
|
| Dimension | |
|---|---|
| Dimension |
15 x 11.5 x 21.1 inches
|
| Weight | 2.7 pounds |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
