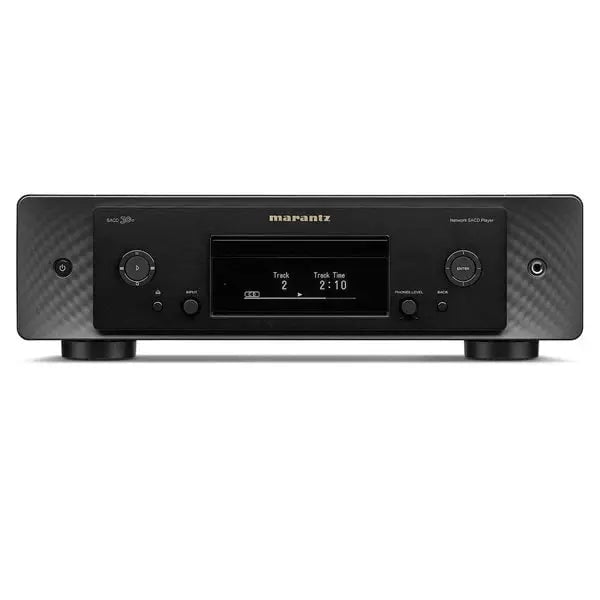

arantz SACD 30n - Network SACD Player

Supported Disc Types

CD, CD-R, CD-RW, SACD, DVD+R, DVD+RW, DVD-R, DVD-RW

Supported Formats

AAC, AIFF, FLAC, M4A, MP3, WAV, WMA

Frequency Response

• 2 Hz to 50 kHz -3 dB (SACD)
• 2 Hz to 20 kHz ±1 dB (CD)

Frequency Range

• 2 Hz to 100 kHz (SACD)
• 2 Hz to 20 kHz (CD)

Dynamic Range

• 109 dB (SACD)
• 98 dB (CD)

Signal to Noise Ratio

• 112 dB (SACD)
• 104 dB (CD)

Max Sample Rate/Resolution

5.6 MHz / 1-Bit (DSD)

Total Harmonic Distortion (THD)

• 0.0008% @ 1 kHz (SACD)
• 0.0015% @ 1 kHz (CD)

Number of Channels

2

Maximum Output Voltage

0.5 Vp-p (RCA)

Audio Outputs

• 2 x RCA Stereo (L/R)
• 1 x TOSLINK Optical
• 1 x Digital Coaxial
• 1 x 1/4" / 6.35 mm Headphone

Audio Inputs

• 2 x TOSLINK Optical
• 1 x Digital Coaxial

Other I/O

• 1 x USB Type-A Input
• 1 x USB Type-B Input
• 2 x TNC (Wi-Fi/BT Antenna) Input
• 1 x RJ45 (Ethernet) Input
• 1 x DE-9 (RS-232C) Input
• 1 x RCA (Remote) Input
• 1 x RCA (Remote) Output
• 1 x 1/8" / 3.5 mm (IR) Input

Operating Temperature

41 to 95°F / 5 to 35°C

Number of Optical Trays

1

AC Input Power

120 VAC, 60 Hz

Power Consumption

• 48 W (Typical)
• 0.4 W (Standby)

Dimensions (W x H x D)

17.4 x 5.1 x 16.7" / 443 x 130 x 424 mm

Weight

30.2 lb / 13.7 kg
