Arcam

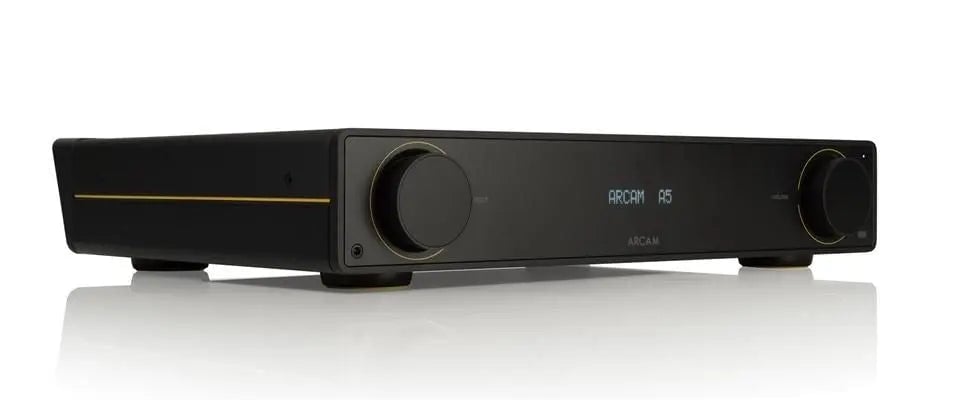

Arcam A5 Integrated Amplifier
star
star
star
star
star
(10 Reviews)
In Stock
₹97,990.00
₹99,990.00
check_circle
In Stock
visibility
539 people are viewing this right now
Shipping calculated at checkout.
Only 7 item(s) left in stock
check_circle
Product Description
check_circle
Class AB amplifier delivering rich, musical sound
check_circle
50W per channel into 8?, 75W into 4?
check_circle
Bluetooth 5.2 with aptX Adaptive for high-quality wireless streaming
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Class AB amplifier delivering rich, musical sound
- 50W per channel into 8?, 75W into 4?
- Bluetooth 5.2 with aptX Adaptive for high-quality wireless streaming
- Coaxial and optical digital inputs support up to 192kHz/24-bit
- Built-in MM phono stage for vinyl playback
- ESS ES9018 DAC for high-performance digital-to-analog conversion
| IN THE BOX | |
|---|---|
| Sales Package | Arcam A5 Integrated Amplifier |
| General | |
|---|---|
| Brand | Arcam |
| Model | A5 |
| Color | black |
|
Continuous power output (0.5% THD), per channel
|
2 channels driven, 20Hz - 20kHz, 8? 50W
2 channels driven, 1kHz, 4? 75W
Harmonic distortion, 80% power, 8? at 1kHz 0.003%
|
|
Analogue Inputs
|
Number of inputs 3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB
Frequency response 20Hz—20kHz ± 0.2dB
|
|
Phono (MM) Input
|
Input impedance 47k? + 100pF
Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB
|
|
Digital Inputs
|
Supported Sample Rates (kHz)
Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1
Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1
|
|
Bit depths (bit) 24, 16
|
Frequency response (fi lter 1) 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB
|
|
Headphone Output
|
Maximum output level (RMS) into 32?/300? 2.5V/5V
Load range 16? - 2k?
|
| Mains voltage | 100V or 110–120V or 220–240V, 50–60Hz |
| Power consumption (maximum) | 350W |
| Power consumption (standby) | <0.5W |
| Dimension | |
|---|---|
| Dimension | 431 x 344 x 83mm |
| Weight | 8 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
