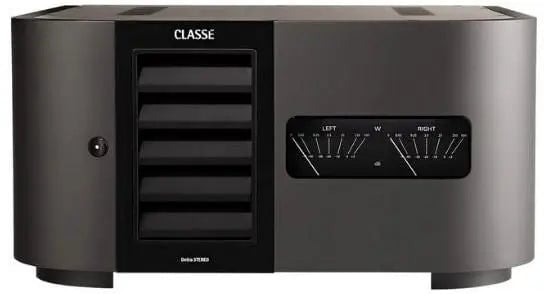

Classe Audio Delta Stereo Power Amplifier
star
star
star
star
star
(10 Reviews)
In Stock
₹1,295,799.00
₹1,299,999.00
check_circle
In Stock
visibility
313 people are viewing this right now
Shipping calculated at checkout.
Only 5 item(s) left in stock
check_circle
Product Description
check_circle
Upto 12.5 W per Channel delivered in pure Class A operation.
check_circle
Features a 250 W per channel total.
check_circle
Massive, high-quality power supply.
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Upto 12.5 W per Channel delivered in pure Class A operation.
- Features a 250 W per channel total.
- Massive, high-quality power supply.
- Custom toroidal transformer.
- Hand-laid circuit boards.
- A 6-layer circuit boards provide for shortened signal and power pathways with lowest noise.
- Features a 22 4-pole Mundorf capacitor.
- Custom-made Navcom® feet to absorb vibrations.
- Furutech rhodium-plated RCA and torque-guard speaker connectors.
- Superb material finishes and a pair of custom-designed illuminated VU meters.
| IN THE BOX | |
|---|---|
| Sales Package | Delta Stereo Power Amplifier and User Documentation |
| General | |
|---|---|
| Brand | Classe-Audio |
| Model | Delta Stereo |
| Color | black |
| Specifications | |
|---|---|
|
Frequency Response
(-3dB, 50Ω source impedance)
|
1Hz – 650kHz |
|
Continuous Output Power
(at 1kHz, 0.1% THD+N)
|
12.5W / 8Ω delivered in pure class A operation
250W / 8Ω
500W / 4Ω (with AC line held constant)
350W / 2Ω (with AC line held constant)
|
|
Harmonic Distortion
(measurement bandwidth:
500kHz, 25Vrms in 4Ω or 8 Ω)
|
<0.0016% at 1kHz
<0.002% at 10kHz
<0.003% at 20kHz
|
|
Harmonic Distortion
(measurement bandwidth:
90kHz, 25Vrms in 4Ω or 8 Ω)
|
<0.0007% at 1kHz
<0.001% at 10kHz
<0.0025% at 20kHz
|
|
Peak Output Voltage
(nominal AC line)
|
129Vp-p into 8Ω
138Vp-p no load
|
|
Input Impedance
(at 1kHz, BAL / SE)
|
82kΩ |
|
Voltage Gain
(at 1kHz, BAL / SE)
|
29dB |
|
Intermodulation Distortion
(SMPTE 4:1) (8Ω or 4Ω, BAL / SE)
|
<0.0018% |
|
Intermodulation Distortion
(CCIF) (8Ω or 4Ω, BAL / SE)
|
<0.004% |
|
Signal-to-Noise Ratio
(A wtd in parenthesis) (22kHz BW)
|
118dB (120dBA) |
| Slew Rate | 75V / μs |
|
Output Impedance
|
0.009Ω (100Hz), 0.009Ω (1kHz),
0.012Ω (10kHz)
|
|
Damping Factor
(at 1kHz, ref 8Ω)
|
850 |
| Dimension | |
|---|---|
|
Width
|
17.50 in (444 mm) |
|
Depth
|
19.37 in (492 mm) |
|
Height
|
8.74 in (222 mm) |
|
Gross Weight
|
116.4 lbs (52.8 kg) |
|
Net Weight
|
102.3 lbs (46.4 kg) |
| Warranty | |
|---|---|
| Warranty Type | Manufacturers |
| Warranty Period | 1 Year |
