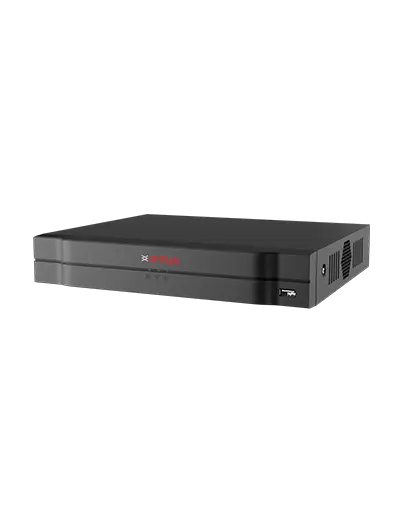

CP PLUS 4 CHN. 4K Network Video Recorder: CP-UNR-4K2041-V4
star
star
star
star
star
(10 Reviews)
In Stock
₹6,230.00
₹8,500.00
check_circle
In Stock
visibility
583 people are viewing this right now
Shipping calculated at checkout.
Only 4 item(s) left in stock
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
| Processor | Industrial-grade processor |
| IP Camera Input | 4 Channels |
| Operating System | Embedded Linux |
| User Interface | Web, Local GUI |
| AI by Camera | Perimeter protection, IMD |
| AI by NVR | IMD |
| Perimeter Performance of AI by Camera | Human and vehicle detection on all channels, supporting up to 4 targets per second |
| Video Output | 1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Abnormality Alarm | Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline |
| IMD+ by NVR | 4 Channels: Secondary filtering for human and motor vehicle, Reducing false alarms caused by leaves, Rain and lighting condition change |
| IMD+ by Camera | Human and vehicle detection on all channels, supporting up to 8 targets per second |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 720p, 960p, D1, CIF, QCIF |
| Network Bandwidth | 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
| Decoding Capability | AI disabled: 1 Channel 12MP@30 fps, 1 Channel 8MP@30 fps, 2 Channel 6MP@30 fps, 2 Channel 5MP@30 fps, 3 Channel 4MP@30 fps, 6 Channel 2MP@30 fps AI enabled: 1 Channel 8MP@30 fps, 1 Channel 6MP@30 fps, 1 Channel 5MP@30 fps, 2 Channel 4MP@30 fps, 4 Channel 2MP@30 fps |
| Video Display Split | 1/4 |
| Record Mode | General, Motion detection, Intelligent, Alarm |
| Video Compression | Instastream, H.265, H.264+, H.264, MJPEG |
| Hard Disk | 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature |
| General Alarm | Motion detection, Camera external alarm, PIR alarm |
| 4G | Support |
| Intelligent Alarm | Perimeter protection, IMD+ |
| Alarm Linkage | Recording, Snapshot, Buzzer, Log, Preset, Email, Tour |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| Audio Input | 1 Channel RCA |
| Audio Output | 1 Channel RCA |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, InstaOn, Auto connect, ONVIF (Profile T, Profile S, Profile G), CGI, SDK |
| PoE Ports | 4 Ports, 10/100 Mbps, IEEE 802.3 af/at |
| Browser | Chrome, IE, Safari, Edge, Firefox |
| Multi-channel Playback | Up to 4 Channels |
| Playback Mode | Instant playback, General playback, Event playback, Tag playback, Smart playback |
| Backup Mode | USB device and network |
| Interface Ports | 2 USB (1 front USB 2.0 port, 1 rear USB 2.0 port), 1 HDMI, 1 VGA |
| Ethernet | 1 (10/100 Mbps Ethernet port, RJ-45) |
| Power Supply | 53V DC, 1.22A |
| Power Consumption | Total output of NVR is <10W (without HDD) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W |
| Operating Temperature | –10°C to +55°C (14°F to +131°F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Storage Temperature | –20°C to +60°C (–4°F to +140°F) |
| Dimension | 260 mm × 232.5 mm × 47.6 mm |
| Weight | 850g |
