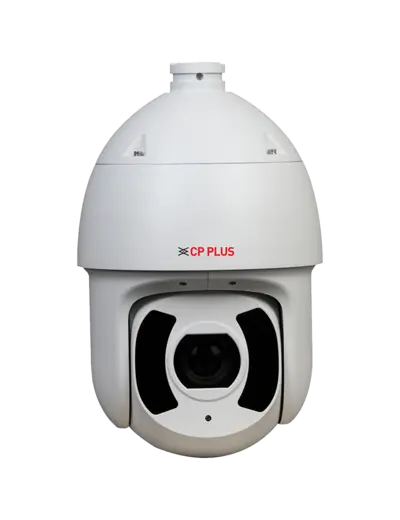

CP Plus 4MP WDR 45x IR Network PTZ Camera- 300 Mtr. – CP-UNP-F4541L30-DPQ
star
star
star
star
star
(10 Reviews)
In Stock
₹74,500.00
₹85,000.00
check_circle
In Stock
🔥
2 total sold
visibility
953 people are viewing this right now
Shipping calculated at checkout.
Only 7 item(s) left in stock
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
| Image Sensor | 1/2.8” 4MP PS CMOS Image sensor (0.9071 centimeters) |
| Effective Pixels | 2688 (H) x 1520 (V) |
| Minimum Illumination | 0.005 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux@F1.6 (IR on) |
| Electronic Shutter | 1 s–1/30000 s |
| RAM | 512 MB |
| ROM | 256 MB |
| White Balance | Auto, Indoor, Outdoor, ATW, Manual, Sodium lamp, Natural light, Street lamp |
| Lens | 3.95 mm–177.75 mm |
| Max. Aperture | F1.6–F4.95 |
| Angle of View | H: 65.7°–1.9°, V: 39.4°–1.1°, D: 73.1°–2.1° |
| Close Focus Distance | 0.1 m–1 m |
| Iris Control | Auto, Manual |
| DORI Distance | 2,451.7 m (Detect), 972.9 m (Observe), 490.3 m (Recognize), 245.2 m (Identify) |
| Focus Control | Auto, Semi-auto, Manual |
| Back Light Compensation | BLC/ HLC/ WDR(120dB) |
| Overlay | Channel Title, Time Title, OSD Info (PTZ Coordinate, Zoom, North, Pattern, Temperature, Preset, Location, Input Text, Text Alignment), Font Properties, Custom Title, Exception Overlay |
| Video Format | PAL |
| S/N Ratio | ≥55 dB |
| Optical Zoom | 45× |
| Digital zoom | 16x |
| Image Rotation | 180° |
| Pan/Tilt Angle | Pan: 0° to 360°, endless, Tilt: –20° to +90°, Auto flip 180° |
| Power-off Memory | Support |
| Manual Speed | Pan: 0.1°/s–260°/s, Tilt: 0.1°/s–120°/s |
| Preset Speed | Pan: 0.1°/s–300°/s, Tilt: 0.1°/s–200°/s |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| Special Features | Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan |
| Idle Motion | Pattern, Preset, Scan, Tour |
| IR | IR Range of 300 Mtr. |
| IR Number | 6 IR |
| IR Control | Zoom Prio, Manual, Smart IR, Off |
| Day/Night | Auto (ICR)/Color/B/W |
| Gain Control | Auto, Manual |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream1) |
| Resolution | 4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 ×1080), 720p (1280 × 720), D1, VGA, CIF |
| Stream Capability | Triple Stream |
| Frame Rate | Main stream: 4MP (2688 x 1520/ 2560 x 1440)@1–25fps, 3MP (2304 x 1296)@1–25fps, 2MP (1920 × 1080)@1–25fps, 720p, Sub stream 1: D1/VGA/CIF@1–25 fps Sub stream 2: 720P@1–25fps |
| Defog | Electronic |
| Bit Rate | H265: 86 kbps–8192 kbps, H264: 216 kbps–8192 kbps |
| Bit Rate Control | CBR/VBR |
| Motion detection | Support |
| RS-485 | 1 Channel |
| ROI | Support |
| Audio In | 1 Channel |
| Audio Out | 1 Channel |
| Audio Compression | PCM, G.711A, G.711MU, G.726, MPEG2-Layer2, G.722.1 |
| Auto Tracking | Support |
| Alarm IN | 7 Channels (on-off value input: 0–5 VDC) |
| Alarm Out | 2 Channels |
| Event Alarm | Motion Detection, Defocus Detection, Disk Full, Disk Error, Video Tampering, External Alarm, Security Warning, Audio Detection, AI Event |
| Noise Reduction | 2D NR/ 3D NR |
| Cyber Security | AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, Syslog, Video encryption, 802.1x, Allow list/Block list, HTTPS, Trusted upgrade, Trusted boot, Firmware encryption |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP V3, SFTP, DHCP, DNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP, Auto Connect, TLS v1.2 and v1.3, ONVIF (Profile S, Profile G, Profile T), InstaOn |
| Reset Button | Support |
| Device Search Tool | IP finder |
| OTA (Over-The-Air) | Support |
| SDK and API | Support |
| IVS (Perimeter Protection) | Crossing virtual fence, Tripwire, Intrusion, Abandoned Object, Fast Moving, Parking Detection, Crowd Gathering, Missing Object, Loitering Detection, IMD |
| Face Detection | Face detection, Face Enhancement, Face Cutout (Face/ One Inch Photo), Snapshot Mode (Real-Time/ Quality Priority), Optimal face snapshot upload, Quality Th |
| User/Host | 20 (Total bandwidth: 64 M) |
| Ethernet | RJ-45 (10/100 Base-T) |
| Alarm Linkage | Capture, Recording, Send email, Preset, Tour, Pattern, Alarm digital output |
| Storage | SFTP, NAS, Mirco SD card (Max. 512GB) |
| Certificates | ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
| Power Source | 24 VDC, 2.5 A ± 25% PoE+ (802.3at) |
| Power Consumption | 24 VDC, 2.5 A ± 25%: Basic: 13 W, Max: 25 W (IR + PTZ) PoE+ (802.3at): Basic: 13 W, Max: 25 W (IR + PTZ) |
| Weatherproof Standard | IP67, IK10, TVS 6000 V lightning proof, Surge protection, Voltage transient protection |
| Browser | Microsoft Edge, Chrome, Firefox |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤ 95% (RH) |
| Dimension | 337.4 mm × 209 mm |
| Weight | 5900g |
