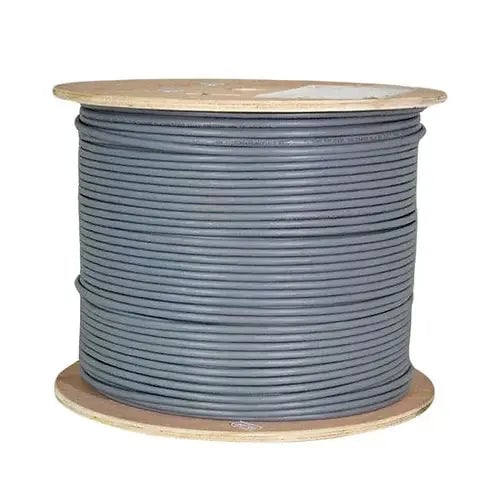

D-Link CAT6 SFTP 23AWG 305m Solid Pure Copper Cable

The D-Link CAT6 SFTP 23AWG Solid Cable is a high-performance networking cable designed for environments requiring enhanced protection against electromagnetic interference (EMI) and crosstalk. Its shielded construction ensures reliable data transmission, making it suitable for both commercial and industrial applications.

🔧 Key Features

• Cable Type: Category 6 SFTP (Shielded Foiled Twisted Pair)

• Conductor: 23 AWG solid bare copper

• Shielding:

  • Individual Pair Shielding: Each pair is wrapped in aluminum/polyester foil with a drain wire

  • Overall Shielding: Tinned copper braiding for added EMI protection

• Insulation: High-Density Polyethylene (HD-PE)

• Jacket Material: Flame Retardant PVC (FR PVC) or Low Smoke Zero Halogen (LSZH)

• Cable Diameter: Approximately 7.5 mm

• Compliance: Exceeds TIA/EIA-568-C.2 and ISO/IEC 11801 standards

📊 Electrical Characteristics

• Characteristic Impedance: 100 ± 15 Ω

• Conductor Resistance: ≤ 9.38 Ω/100m

• Mutual Capacitance: < 5.6 nF/100m

• Resistance Unbalance: ≤ 5%

• Capacitance Unbalance: ≤ 330 pF/100m

• Delay Skew: < 45 ns

• Nominal Velocity of Propagation (NVP): 69%

📦 Packaging

• Length: 305 meters (1,000 feet) per roll

• Packaging: Supplied in an easy-to-pull box for convenient installation

🏢 Ideal Applications

• High-speed data transmission networks

• Environments with high EMI, such as industrial settings

• Data centers and server rooms

• Structured cabling for commercial buildings

For more detailed specifications, you can refer to the D-Link CAT6 SFTP Cable Datasheet.

If you need further assistance or have questions about compatibility with your networking setup, feel free to ask!
