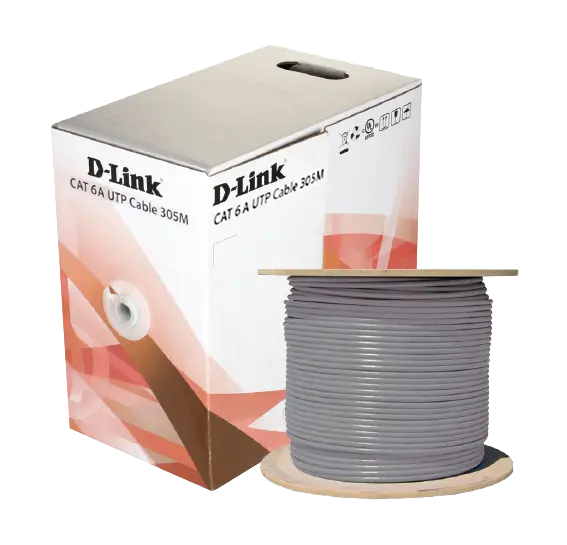

D-Link Cat6A UTP 23AWG Solid Copper Cable (305m)

The D-Link Cat6A U/UTP 23AWG Solid Copper Cable is engineered for high-performance networking, supporting data transmission speeds up to 10 Gigabits per second (10GBase-T) over distances up to 100 meters. This cable is ideal for enterprise networks, data centers, and environments requiring high bandwidth and minimal interference.

🔧 Key Specifications

• Cable Type: Category 6A Unshielded Twisted Pair (U/UTP)

• Conductor: 23 AWG solid bare copper

• Frequency Bandwidth: Up to 500 MHz

• Insulation Material: High-Density Polyethylene (HDPE)

• Jacket Options: Flame Retardant PVC (FR PVC) or Low Smoke Zero Halogen (LSZH)

• Outer Diameter: Approximately 6.9 mm ± 0.3 mm

• Compliance: Meets ANSI/TIA-568-C.2 and ISO/IEC 11801 standards

• Packaging: 305 meters (1,000 feet) per roll, supplied in an easy-to-pull box for convenient installation

⚡ Electrical Characteristics

• Characteristic Impedance: 100 ± 15 Ω

• Mutual Capacitance: ≤ 5.6 nF/100m

• Resistance Unbalance: ≤ 5%

• Capacitance Unbalance: ≤ 330 pF/100m

• Nominal Velocity of Propagation (NVP): 69%

• Delay Skew: < 45 ns

🏢 Ideal Applications

• High-speed data transmission networks

• Data centers and server rooms

• Enterprise LAN environments

• Structured cabling for commercial buildings

If you need assistance comparing this cable with other networking cables or have questions about its compatibility with your existing setup, feel free to ask!
