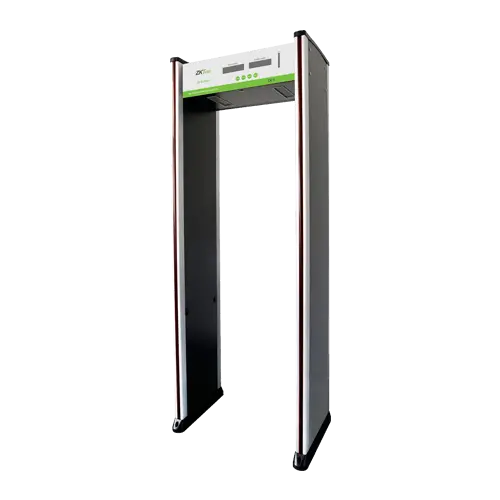

DFMD 18 ZONES WITH TEMPERATURE DETECTION

• Eighteen mutual over-lapping detecting zones, Simultaneous alarm from multi- zones; • Sensitivity adjustable: Each zone has 256 sensitivity level, 0-255 adjustable • 5.7 inch LCD screen • Infrared remote control • Sound & LED alarm: Both Side LED indicator, easily show where the metal is. • Automatically count passengers and alarm times • Alarm strength indicator on control panel • Password protection, only the authorized person can operate. • Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction. • Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc. • Using high density fireproof material • Program Self-diagnostic when power on,no need initial or periodic calibration • Modularization design,easy for maintenance and replacement. • 4-8 hours backup battery (Option)

Power Supply AC85 V-264 V Working temperature -20℃--+50℃ Working Frequency 4KHZ—8KHZ Standard External size 2200mm(H)X800mm(W)X580mm(D) Standard Internal size 2010mm(H)X700mm(W)X500mm(D) Package size for door panels 2260*650*260mm *1ctn Package size for control unit 780*390*250 mm*1ctn Gross weight 70KG
