Emotiva

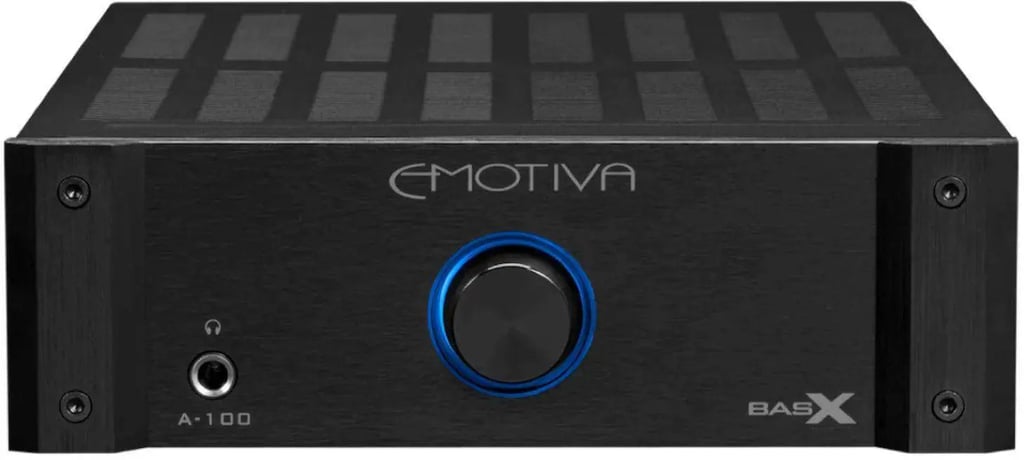

Emotiva A-100 - Stereo Amplifier
star
star
star
star
star
(10 Reviews)
In Stock
₹34,700.00
₹35,000.00
check_circle
In Stock
visibility
705 people are viewing this right now
Shipping calculated at checkout.
Only 8 item(s) left in stock
check_circle
Product Description
check_circle
50W per channel RMS into 8 Ohms 80W per channel RMS into 4 Ohms
check_circle
1/4" headphone jack with optional high-power mode
check_circle
Frequency response: 20 Hz – 20 kHz ±0.08 dB at 1W
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- 50W per channel RMS into 8 Ohms 80W per channel RMS into 4 Ohms
- 1/4" headphone jack with optional high-power mode
- Frequency response: 20 Hz – 20 kHz ±0.08 dB at 1W
- Signal-to-noise ratio: >110 dB (A-weighted)
- Total harmonic distortion (THD): <0.05%
- Unbalanced RCA inputs and loop outputs
| IN THE BOX | |
|---|---|
| Sales Package | Emotiva A-100 - Stereo Amplifier |
| General | |
|---|---|
| Brand | Emotiva |
| Model | A-100 |
| Color | black |
|
Power Output (main outputs; two channels driven)
|
50 watts / channel RMS; 8 Ohms; 20 Hz – 20 kHz; <0.05% THD.
80 watts / channel RMS; continuous; into 4 ohms.
|
|
Power Output (headphone output; normal mode)
|
8 Ohms: 60 mW / channel
33 Ohms: 200 mW / channel
47 Ohms: 250 mW / channel
150 Ohms: 430 mW / channel
300 Ohms: 440 mW / channel
600 Ohms: 350 mW / channel
|
|
Power Output (headphone output; direct drive mode)
(requires internal jumper; USE WITH CAUTION)
|
8 Ohms: 50 watts / channel
33 Ohms: 12 watts / channel
47 Ohms: 8.5 watts / channel
150 Ohms: 2.6 watts / channel
300 Ohms: 1.3 watts / channel
600 Ohms: 0.6 watts / channel
|
|
Broad Band Frequency Response
|
20 Hz – 20 kHz + / - 0.08 dB at 1 watt
(-1 dB at 80 kHz).
|
|
Signal to Noise Ratio (8 Ohm load)
|
> 110 dB; ref rated power; (A-weighted). |
|
Minimum Recommended Load Impedance (per channel)
|
4 Ohms. |
|
Damping Factor (8 Ohm load)
|
> 500. |
|
Input Sensitivity (for rated power; 8 Ohm load)
|
600 mV (0.6V). |
|
Input Impedance
|
27 kOhms. |
|
Input Connections
|
Unbalanced (RCA); one each per channel. |
|
Output Connections
|
Loop output (RCA); one each per channel. |
|
Speaker Output Connections
|
Audiophile grade 5-way binding posts. |
|
Headphone Output
|
Front panel jack; full sized 1/4”.
Headphone output is derived from the main speaker outputs via
high quality 220 Ohm resistors.
Optional high-power mode for driving low-efficiency planar headphones.
|
|
Trigger
|
The BasX A-100 may be configured to be turned on manually, or by a trigger signal from a preamp or processor, or to turn on automatically when it senses an audio signal on any of its inputs.
Manual Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required.
Trigger Output: 12 VDC; can drive any load up to 120 mA.
|
|
Front Panel Controls and Indicators
|
Volume; analog potentiometer with machined aluminum knob and
illuminated status ring.
|
|
Rear Panel Controls
|
AC Power switch.
Line Voltage (protected slide switch).
Trigger Switch (mode) (On, Off, Auto).
|
| Dimension | |
|---|---|
| Dimension | 8-1/2” wide x 3.125” high x 15” deep |
| Weight | 5.35 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
