Emotiva

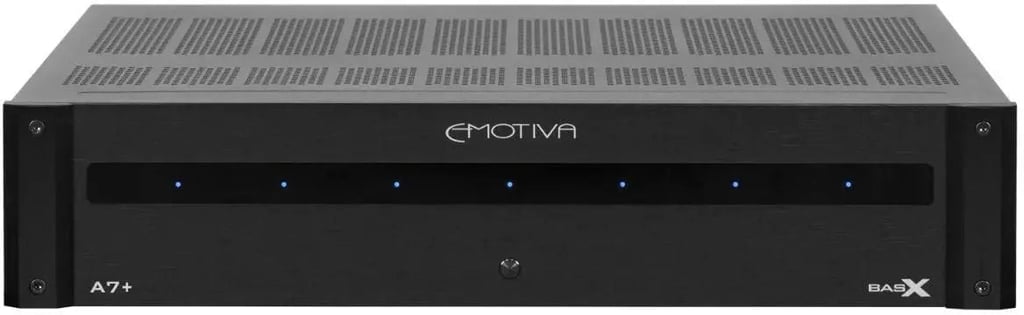

Emotiva BasX A7 Plus Seven-Channel Power Amplifier
star
star
star
star
star
(3 Reviews)
In Stock
₹94,800.00
₹130,500.00
check_circle
In Stock
visibility
2 people are viewing this right now
Shipping calculated at checkout.
Only 6 item(s) left in stock
check_circle
Product Description
check_circle
Class A/B amplifier design with smooth, natural sound
check_circle
Linear power supply with oversized toroidal transformer
check_circle
90W per channel (8?), 125W per channel (4?), all channels driven
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Class A/B amplifier design with smooth, natural sound
- Linear power supply with oversized toroidal transformer
- 90W per channel (8?), 125W per channel (4?), all channels driven
- 120W per channel (8?), 175W per channel (4?), two channels driven
- Frequency response: 20Hz–20kHz (±0.07dB), extends to ~80kHz
- THD+N <0.02%, SNR >112dB
- Stable with 4?–8? loads, damping factor >500
- Balanced XLR and unbalanced RCA inputs
| IN THE BOX | |
|---|---|
| Sales Package | Emotiva BasX A7 Plus Seven-Channel Power Amplifier |
| General | |
|---|---|
| Brand | Emotiva |
| Model | BasX A7 Plus |
| Color | black |
| Power Output (ALL channels driven) |
90 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.02%; into 8 Ohms.
125 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.
|
| Power Output (two channels driven) |
120 watts RMS per channel; into 8 Ohms.
175 watts RMS per channel; into 4 Ohms.
|
| Gain | 29 dB. |
|
Power Bandwidth (at rated power; 4 Ohm - 8 Ohm load)
|
20 Hz to 20 kHz (+ / – 0.07 dB). |
|
Broad Band Frequency Response
|
5 Hz to 80 kHz +0/-1.8 dB. |
|
THD + noise
|
< 0.02% (A-weighted); ref rated power. |
|
Signal to Noise Ratio (8 Ohm load)
|
> 112 dB; ref rated power; (A-weighted).
> 95 dB; ref 1 watt; (A-weighted.
|
|
Minimum Recommended Load Impedance (per channel)
|
4 Ohms (equals one 4 Ohm speaker or two paralleled 8 Ohm speakers). |
|
Damping Factor
|
(8 Ohm load): > 500. |
|
Input Impedance
|
27 kOhms. |
|
Input Connections
|
Unbalanced (RCA); one each per channel
Balanced (XLR); one each per channel.
|
|
Trigger
|
Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required
Trigger Output: 12 VDC; can drive any load up to 120 mA
|
| Dimension | |
|---|---|
| Dimension | 17” wide x 4-1/4” high x 15-1/2” deep |
| Weight | 12.7 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
