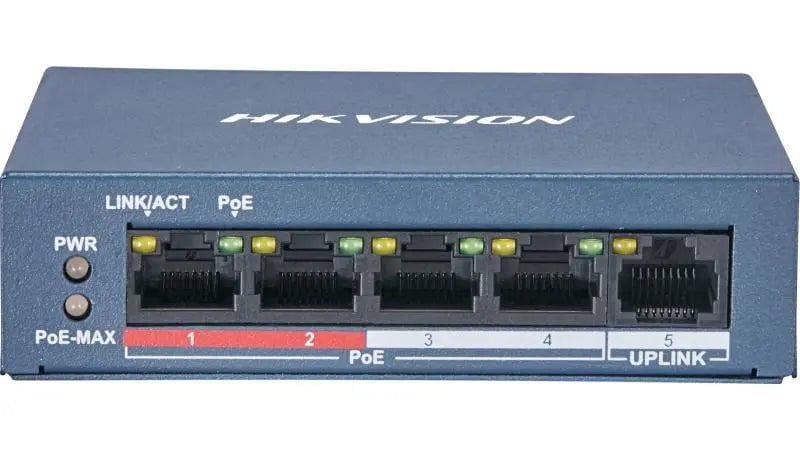

HIKVISION 4 Port PoE Switch (DS-3E0105P-E/M)

4 Port Fast Ethernet Unmanaged POE Switch

• Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
• Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
• 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
• 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
• Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

Specification
PoE Power SupplyPoE StandardIEEE 802.3af, IEEE 802.3atPoE Power PinSupports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supplyPoE PortPorts 1 to 4Max. Port Power30 WPoE Power Pudget35 WMax. Power Consumption38 WNetwork ParametersPort Number4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet portPort TypeRJ45 port, full duplex, MDI/MDI-X adaptiveStandardIEEE 802.3, IEEE 802.3u, IEEE 802.3xForwarding ModeStore-and-forward switchingWorking ModeStandard mode (default); Extend modeHigh Priority PortsPorts 1 to 2Ports For Long-Distance TransmissionPorts 1 to 4MAC Address Table1 KSwitching Capacity1 GbpsPacket Forwarding Rate0.744 MppsInternal Cache448 KbitsGeneralShellMetal material, fan-free designGross Weight0.48 kg (1.06 lb)Net Weight0.2 kg (0.4 lb)Dimension (L × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)Operating Humidity5% to 95% (no condensation)Storage Humidity5% to 95% (no condensation)Power Supply48 VDC, 0.8 APower Consumption In Idle3 WApprovalEMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
