HIKVISION

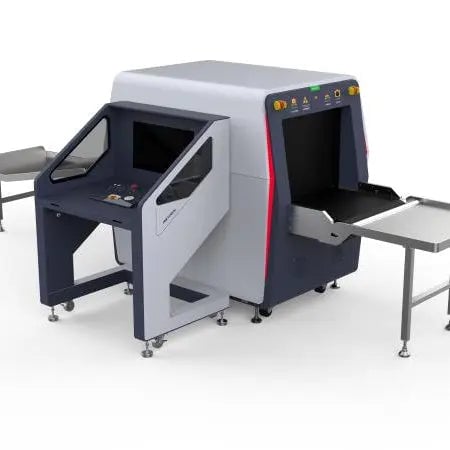

Hikvision Intelligent X-Ray Security Inspection System ISD-SC6550S-4CVL
star
star
star
star
star
(10 Reviews)
In Stock
₹2,250,000.00
₹2,749,999.99
check_circle
In Stock
visibility
455 people are viewing this right now
Shipping calculated at checkout.
Only 5 item(s) left in stock
check_circle
Dimension Parameters
check_circle
Tunnel Size660mm Wx505 mm H
check_circle
Specification Parameters
check_circle
Max. Load150 kg (330.69 lb)
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
- Dimension Parameters
- Tunnel Size660mm Wx505 mm H
- Specification Parameters
- Max. Load150 kg (330.69 lb)
- Conveyor Speed0.2m/s, 0.3m/s, 0.4m/s adjustable
- Performance Parameters
-
Penetration
30mm standard,36 mm typical
40+mm by customize
- Wire Resolution38AWG standard, 40AWG typical
-
Spatial Resolution
Vertical: 1.0 mm (0.04")
Horizontal: 1.0 mm (0.04)
- General Standard
- Power Consumption0.8 kw
- 530 kg (1058.22lb)
- Radiation Dose
- X-Ray Dose Per Inspection< 5 μGy
- X-Ray Leakage< 1 μGy/h
- Other Parameters
-
X-Ray Generator
Anode Voltage: 160KV
100% Oil Cooling, Single generator, vertical beam direction.
- General
- Power Supply220 VAC/110 VAC (-10% to +15%), 50 Hz /60 Hz(±3 Hz)
- Working Temperature0 °C to 40 ° C (41 °F to 104 °F)
- Working Humidity0% to 90%
-
Dimension (W × H × D)
Main engine appearance dimensions:2127 mm × 989 mm × 1351mm (L x W x H)
Single display professional operation Desk Size:850mmx 700mm x 1200mm (L x W x H)
