JBL

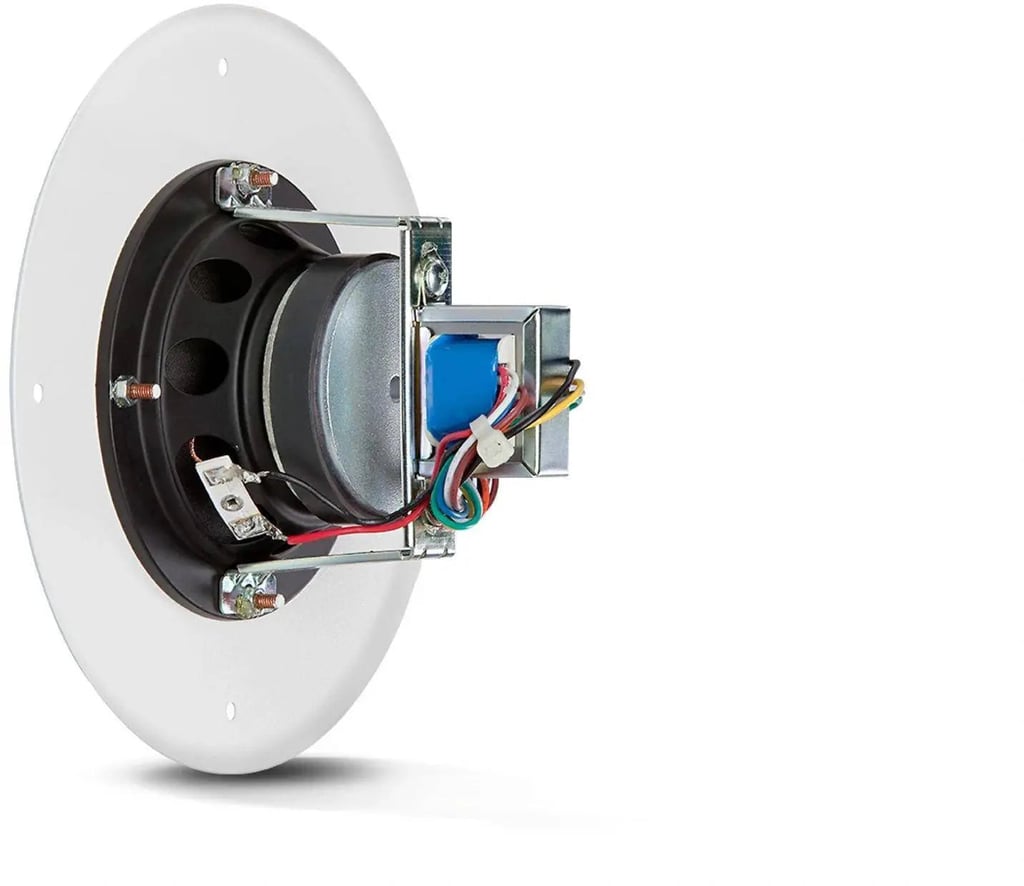

JBL CSS8004 - 4 inch 15W Full-Range In-Ceiling Speaker
star
star
star
star
star
(3 Reviews)
In Stock
₹3,350.00
check_circle
In Stock
visibility
1 people are viewing this right now
Shipping calculated at checkout.
Only 7 item(s) left in stock
check_circle
Product Description
check_circle
90 dB sensitivity for clear sound even at low settings
check_circle
5-watt multi-tap transformer for 100V, 70V, and 25V systems
check_circle
175° conical coverage for even sound distribution
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- 90 dB sensitivity for clear sound even at low settings
- 5-watt multi-tap transformer for 100V, 70V, and 25V systems
- 175° conical coverage for even sound distribution
- Compact design with 94 mm depth and 198 mm grille diameter
- Compliant with UL1480, UL2043, NFPA 90, and NFPA 70 standards
- Compatible with CSS-BB4 backcan for easy installation
| IN THE BOX | |
|---|---|
| Sales Package | JBL CSS8004 - 4 inch 15W Full-Range In-Ceiling Speaker |
| General | |
|---|---|
| Brand | JBL |
| Model | CSS8004 |
| Color | white |
|
Drivers
|
100 mm (4 in) |
|
Sensitivity
|
90 dB (2k - 6k Hz) |
| Frequency Range (-10 dB) Driver/Grille Assembly | 85 Hz – 18 kHz |
|
Installed in CSS-BB backcan
|
130 Hz – 18 kHz |
|
Coverage Angle
|
175° conical |
|
Driver Continuous Power Handling
|
15 Watts |
|
Transformer Taps
|
5W, 2.5W, 1.3W |
|
Transformer Taps
|
5W, 2.5W, 1.3W, 0.7W |
|
Transformer Taps
|
5W, 2.5W, 1.3W, 0.7W |
|
Maximum SPL (1m)
|
97 dB (top 25V/70V/100V tap) |
| Dimension | |
|---|---|
| Diameter: | 9.5 inches (241 mm) |
|
Depth:
|
4.1 inches (104 mm)
|
| Weight | 900 g |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
