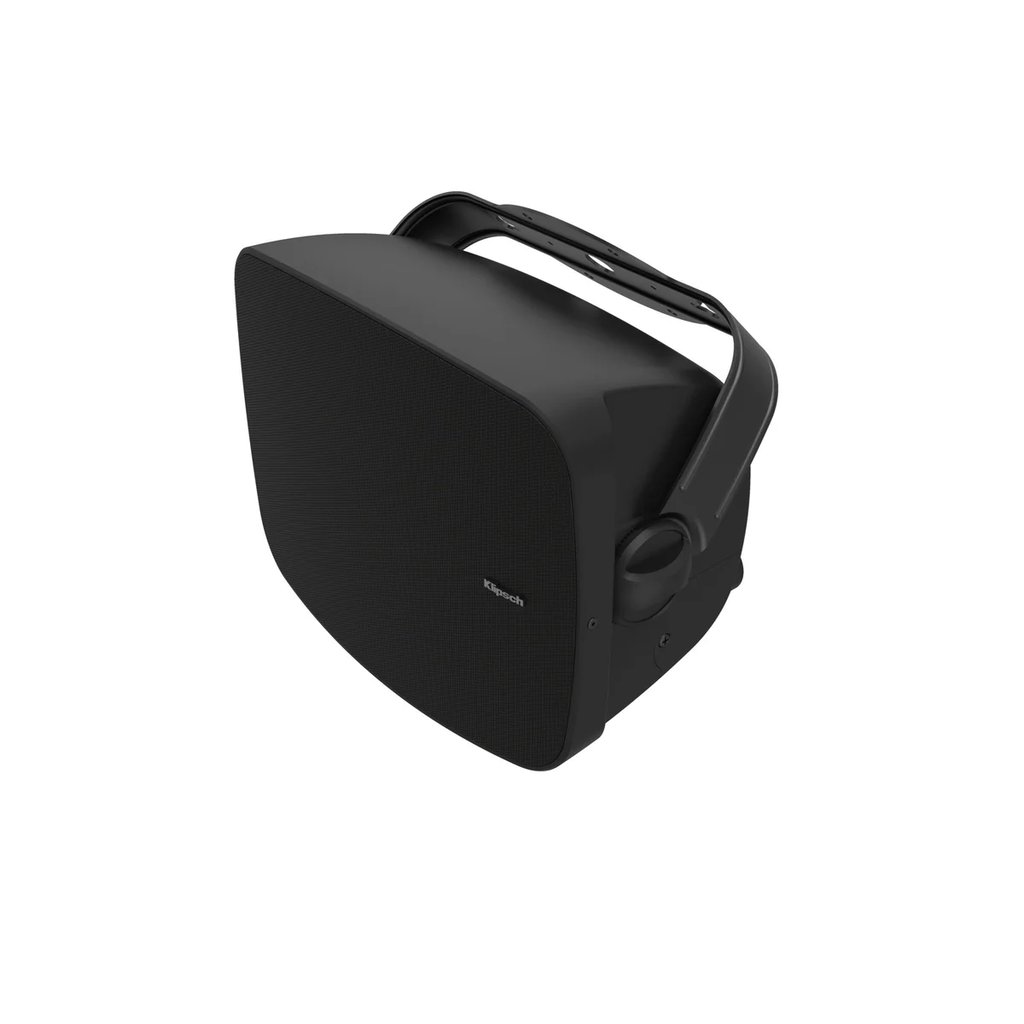

Klipsch PSM-525-T On-Wall Speaker (PAIR)

Key Features

• Tractrix® Hyperfold Port™: Patented five-step folded port design extends effective port length for deeper bass output and wider dispersion without enlarging the enclosure footprint.
• 1" Titanium Compression Driver: Titanium diaphragm with floating driver bridge and wide-dispersion phase plug delivers high-clarity detail and consistent 100-degree coverage via Klipsch's patented mumps technology.
• IPX6 Weather Rating: Certified resistant to high-pressure water jets, making the PSM-525T suitable for outdoor installations including pool decks, patios, and covered outdoor venues.
• Multi-Tap Transformer (70V / 100V): Built-in transformer supports 70-volt taps at 3.7, 7.5, 15, and 30 watts, and 100-volt taps at 7.5, 15, and 30 watts, enabling flexible distributed audio system design.
• 8-Ohm Bypass Position: Includes a bypass setting for standard 8-ohm operation with conventional amplifiers and receivers, handling up to 65W RMS (260W peak) in bypass mode.
• 4-Pin Phoenix (Euroblock) Connector: Simplifies installation with tool-free wire termination; two pins for input and two for daisy-chain output, with a rubberized weather-resistant cover.
• Adjustable C-Style Mounting Bracket: Corrosion-resistant aluminum bracket enables wall or ceiling mounting with nearly 180-degree rotation for precise sound direction adjustment.
• Paintable Rust-Proof Aluminum Grille: Available in black or white; the aluminum grille is fully paintable to match any decor and secured with set screws that remain in place regardless of environmental conditions.
• UV-Resistant ABS Enclosure: All-weather ABS plastic construction withstands prolonged sun exposure without fading, cracking, or degrading acoustic performance.

Technical Specifications
