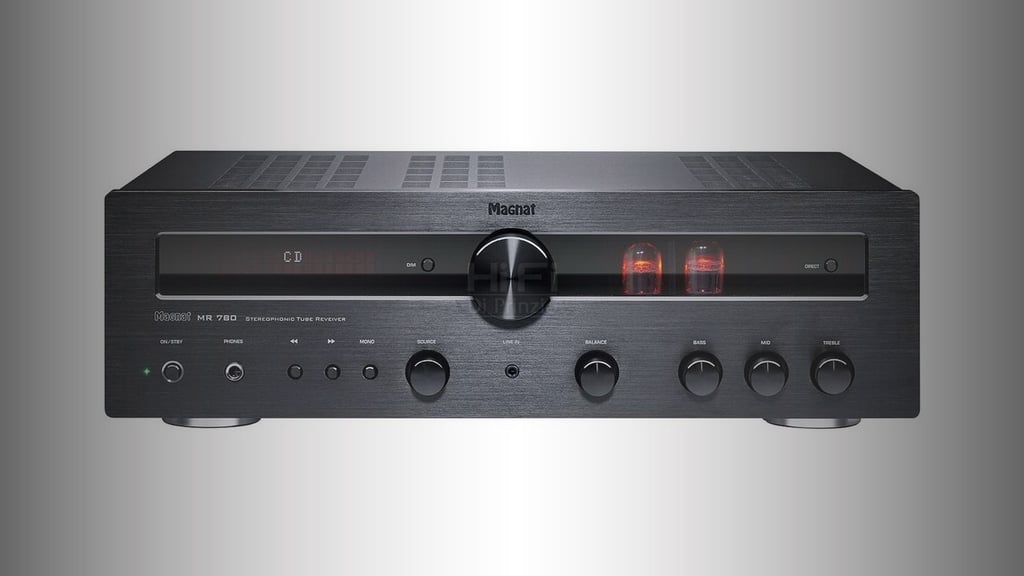

Magnat MR 780 amplifier

Key Features

• Hybrid amplifier combining tube preamplification with transistor power amplification.

• Two ECC 81 vacuum tubes for warm, natural sound.

• Powerful output of 100 W per channel at 4 ohms.

• Bluetooth 4.0 with Qualcomm aptX for wireless audio streaming.

• Built-in DAB+/FM tuner with RDS and radio text.

• High-resolution USB audio support up to 192 kHz/24-bit.

• Two optical and two coaxial digital inputs.

• MM phono input for connecting a turntable.

• Five analogue line-level inputs for versatile connectivity.

• Dedicated 6.3 mm headphone output.

• Premium Wolfson digital-to-analogue converter (DAC).

• Solid metal chassis with brushed aluminium front panel.

• Remote control with adjustable display brightness.



  specification

  Sales Package

  Magnat MR 780 amplifier

  General
  Brand	Magnat
  Model	MR 780
  Color	black
  Principle:	High-end hybrid receiver with tube preamplifier, a high-performance transistor output stage und Bluetooth aptX
  S/N Ratio:	CD/Tuner/Aux/Line/Tape: 104 dB (A)   Digital inputs   Phono MM:  82 dB (A)
  Tubes:	Preamplifier fitted with 2x ECC 81 / 12AT7
  Amplifier, output power:	Nominal power   20 Hz – 20 kHz, THD < 1.0%, 4 ? 2 x 100 W   20 Hz – 20 kHz, THD < 1.0%, 8 ? 2 x 75 W   Peak power: 1 kHz, 4 ? 2 x 180 W
  Digital inputs:	1x USB 2.0, type B connector   2x optical (Toslink™)   2x coaxial (cinch)   Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz Supported bit depths: 16/24bits
  Frequency response	CD/Tuner/Aux/Line/Tape: 6 Hz – 90 kHz (-3,0 dB)      20 Hz –  20 kHz (+/-0,3 dB)   Phono: 20 Hz – 20 kHz (+/-0,8 dB) Subsonic Filter : 16 Hz, 18 dB/Oct.

  Dimension
  Dimension	43,3 x 13,2 x 31,7 cm
  Weight	8,9 kg

  Warranty
  Warranty Type	Official Manufacturer Warranty
  Warranty Period	1 year
