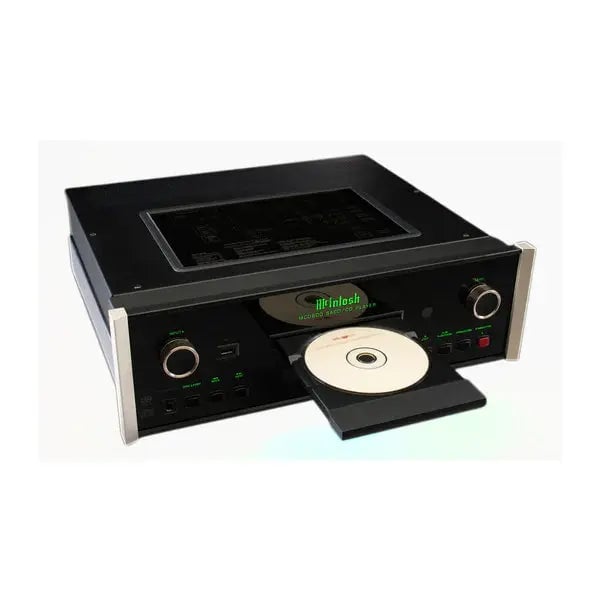

McIntosh Labs MCD600 - 2 Channel SACD/CD Player

Number of Channels

2

Fixed Output Level

2.0Vrms Unbalanced

4.0Vrms Balanced

Variable Output Level

0 - 8.0Vrms Unbalanced

0 - 16.0Vrms Balanced

Output Impedance

600 ohms Unbalanced and Balanced

Frequency Response

4Hz to 40kHz, +0.5, -2dB (SACD)

4Hz to 20kHz, ±0.5dB (CD)

4Hz to 40kHz, +0.5, -2dB (Data)

Signal To Noise Ratio

Better than 110dB (A-weighted)

Dynamic Range

Better than 100dB

Total Harmonic Distortion

0.002% @ 1000Hz (SACD)

0.002% @ 1000Hz (CD)

0.002% @ 1000Hz (Data)

Channel Separation

Better than 98dB (1,000Hz)

Headphone Output Impedance

47 ohms

Digital-to-Analog Converter (DAC) Type

Premium 8-channel, 32-bit PCM/DSD, Quad Balanced

Coaxial Sample Rate

16, 24-bit/96kHz

Optical Sample Rate

16, 24-bit/192kHz

USB Sample Rate

16, 24-bit/192kHz

Digital Coaxial Input

0.5V p-p/75 ohms

Digital Optical Input

-15dbm to -21dbm

Digital Output Sample Rate

Up to 24-bit/192kHz

Digital Optical Output

-15dbm to -21dbm

Digital Coaxial Output

0.5V p-p/75 ohms

Digital Output Jitter

N/A

Digital XLR Output

N/A

Digital MCT Output

N/A

Balanced Fixed Output

1

Unbalanced Fixed Output

1

Balanced Variable Output

1

Unbalanced Variable Output

1

Digital Optical Output

1

Digital Coaxial Output

1

Digital Optical Input

1

Digital Coaxial Input

1

Digital MCT Input

0

Digital USB Input

1 (front)

Digital USB Input Type

Type A

Digital MCT Output

0

Digital XLR Output

0

Headphone Output

1/4" High Drive

Power Control Input

1

Power Control Output

1

Rear Panel Data Input

1

Rear Panel IR Sensor Input

1

RS232 Control Input

0

Disc Formats

SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA

Disc Capacity

1

Laser Type

Twin Beam

Laser Beam Wavelength

650nm (SACD)

790nm (CD)

Laser Power

CLASS IIa/CLASS I

Standby Power Requirement

<0.5 watt

Unit Dimensions (W x H x D)

17-1/2" (44.45cm) x 6" (15.24cm) x 19" (48.3cm)Note: When the Disc Tray is opened, the panel clearance required in front of mounting panel is 6-3/4 inches (17.2cm).

Unit Weight

28 lbs (12.7 kg)

Shipping Weight

45 lbs (20.4 kg)
