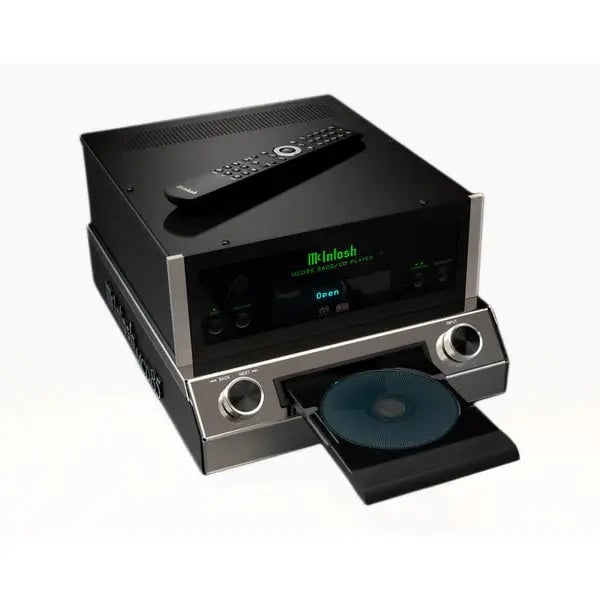

McIntosh Labs MCD85 - 2-Channel SACD/CD Player

Number of Channels

2

Fixed Output Level

2.0Vrms Unbalanced

4.0Vrms Balanced

Variable Output Level

N/A

Output Impedance

100 ohms Unbalanced and Balanced

Frequency Response

±0.5dB from 20Hz-20kHz

Signal To Noise Ratio

Better than 100dB (A-weighted)

Dynamic Range

Better than 96dB

Total Harmonic Distortion

0.02% @ 1000Hz

Channel Separation

Better than 85dB (1,000Hz)

Headphone Output Impedance

N/A

Digital-to-Analog Converter (DAC) Type

8-channel, 32-bit PCM/DSD, Quad Balanced

Coaxial Sample Rate

16, 24-bit/192kHz

Optical Sample Rate

16, 24-bit/192kHz

USB Sample Rate

16, 24-bit/192kHz

Native DSD and DoP DSD Up to DSD256, DXD384

Digital Coaxial Input

0.5V p-p/75 ohms

Digital Optical Input

-15dbm to -21dbm

Digital Output Sample Rate

N/A

Digital Optical Output

N/A

Digital Coaxial Output

N/A

Digital Output Jitter

N/A

Digital XLR Output

N/A

Digital MCT Output

N/A

Balanced Fixed Output

1

Unbalanced Fixed Output

1

Balanced Variable Output

0

Unbalanced Variable Output

0

Digital Coaxial Input

2

Digital MCT Input

0

Digital Optical Input

2

Digital USB Input

1

Digital USB Input Type

Type B

Digital Coaxial Output

0

Digital MCT Output

0

Digital Optical Output

0

Digital XLR Output

0

Headphone Output

0

Power Control Input

1

Power Control Output

1

Rear Panel Data Input

1

Rear Panel IR Sensor Input

1

RS232 Control Input

0

Disc Formats

SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA

Disc Capacity

1

Laser Type

Twin Beam

Laser Beam Wavelength

650nm (SACD)

790nm (CD)

Laser Power

CLASS IIa/CLASS I

Standby Power Requirement

<0.5 watt

Unit Dimensions (W x H x D)

12-5/32" (30.9cm) x 7-3/4" (19.7cm) x 16-1/4" (41.3cm)

Unit Weight

20.5 lbs (9.3 kg)

Shipping Weight

27.5 lbs (12.5 kg)
