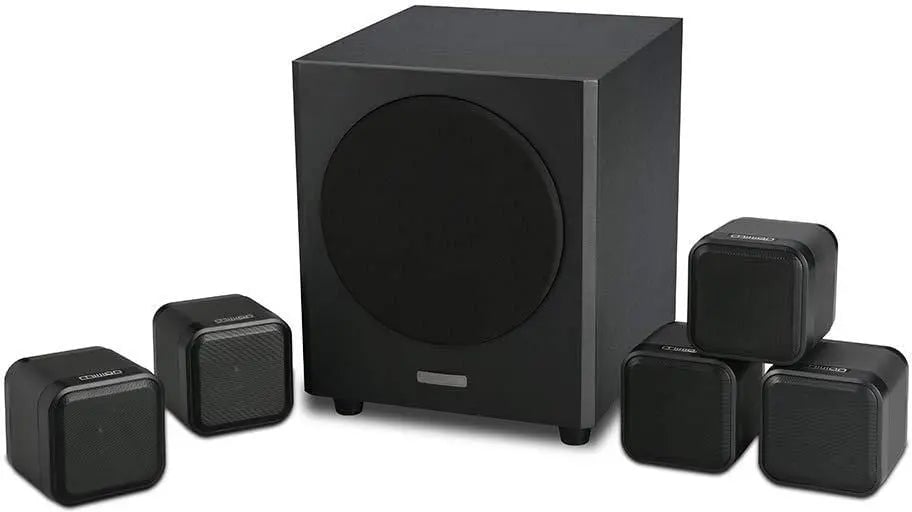

Mission M-cube+se 5.1 Channel Surround Sound System
Product Description
- Features an active closed box subwoofer system with wide bandwidth bookself or surround speaker.
- Subwoofer a powerhouse accepting LFE output from AV processor and achieving a 35-150Hz power spectrum with exceptional dynamics and control.
- High linearity sub-bass unit driven by 150 Watt Class D amplifier equipped with precisely aligned equalization for clear and powerful bass.
- Full-range driver in each satellite covers the frequency range 120 Hz to 20 kHz.
Product features
The Mission M-CUBE+SE is planned explicitly to meet the prerequisites of the home client who requires a quarrel free answer for Cinema and Surround Sound music in the home. Establishment is straightforward thanks to the little, rich appearance of the M-CUBE+SE satellite speakers, the various mounting game plans, and the wide scattering attributes. Proceeding with the outcome of the M-CUBE series we, at Mission, bring to you this most recent rendition which makes certain to be a number one.This is the all-new M-CUBESE 5.1 channel sound systemencompass sound framework from the imaginative range.
Proceeded with SUCCESS
Proceeding with the progress of the M-CUBE series we, at Mission, bring to you this most recent variant which makes certain to be a #1. This is the all-new M-CUBE+SE 5.1 encompass sound framework from the inventive M-CUBE range. The M-CUBE plus speaker system is designed specifically to meet the requirements of the home user who requires a fuss-free solution to Cinema and Surround Sound music in the home.
5.1 SURROUND
The full-range driver in every MCUBE+SE satellite speaker not just covers the recurrence range 120Hz to 20kHz, yield by an AV processor set to 'Little' yet additionally scatters its result over a wide listening region. Continuing the success of the CUBE-series mission speakerwe, at Mission, bring to you this latest version which is sure to be a favourite. This is the all-new M-CUBE+SE 5.1 surround sound system from the innovative range. The M CUBE plus SE is designed specifically to meet the requirements of the home user who requires a fuss-free solution to Cinema and Surround Sound music in the home.
Satellite Speaker Placement
With simple introduce on-wall or rack mounting, the new Mission MCUBE-SE Home system is the answer for anybody searching for greetings fi quality sound from AV and music sources who require a flexible and discrete amplifier framework. The full-range driver in each M-CUBE SE satellite speaker not only covers the frequency range 120Hz to 20kHz, output by an AV processor set to ‘Small’ but also disperses its output over a wide listening area. The M-CUBESE subwoofer is a powerhouse accepting LFE output from the AV processor and achieving a 35 – 150Hz power spectrum with exceptional dynamics and control.
Design
The M-CUBE+SE by mission is planned explicitly to meet the necessities of the home client who requires a fight free answer for Cinema and Surround Sound music in the home. Establishment is basic on account of the little, rich appearance of the M CUBE SE satellite speakers numerous mounting courses of action and the wide scattering qualities.
Powerful Bass
The Satellite speaker subwoofer is a force to be reckoned with tolerating LFE yield from the AV processor and accomplishing a 35 - 150Hz power range with remarkable elements and control. This is the consequence of utilizing a 200mm long-toss, high linearity sub-bass unit driven by another 150 Watt Class D enhancer outfitted with unequivocally adjusted balance for a reasonable and strong bass interpretation that matches the satellites.
Powerful Subwoofer
| IN THE BOX | |
|---|---|
| Sales Package | Main Unit, Attachments, Power Cord, Floor Spikes, User Manual, Warranty Card |
| General | |
|---|---|
| Brand | Mission |
| Model | ‎M-CUBE+SE |
| Color | black |
|
M-CUBE+SE SUBWOOFER SPECIFICATIONS
|
|
|---|---|
|
General Description
|
Active closed-box subwoofer system |
|
Enclosure Type
|
Closed Box |
| Transducer complement | 8 inch (200 mm) long throw bass driver |
| Input sensitivity | 200 mV for maximum Ouput |
|
Amplifier power output
|
70 W |
|
Peak power output
|
150 W |
|
Peak SPL
|
110 dB |
|
Frequency response
|
40 Hz -150 Hz |
|
Bass extension (-6dB)
|
35 Hz |
|
Crossover frequency
|
35 Hz -150 Hz |
|
Signal -to-noise ratio(s/n)
|
>85 dB |
| Power requirements | AC 100V-120V~/60Hz or 220V-240V~50/60Hz |
| Standard accessories | Power cord, floor spikes, user manual, guarantee certificate |
| Special features | Phase inversion, Auto On/Off, low pass filter frequency adjustment |
|
Dimension (H*W*D)MM
|
H(298+30)*W268*D294 MM |
| Net Weight (Kg) | 12 kg (Packed in a system, incl. subwoofer and Spcs satellite speakers) |
|
M-CUBE+SE SATELLITE SPECIFICATIONS
|
|
|---|---|
|
General description
|
Wide bandwidth bookshelf/surround speaker |
|
Enclosure Type
|
Close box |
|
Transducer driver
|
3†Full range |
|
AV shield
|
No |
|
Sensitivity (2.83V@1M)
|
85 dB |
|
Recommended amplifier power
|
40-80 W |
|
Nominal impedance
|
8 Ohms |
|
Minimum impedance
|
3.6 Ohms |
|
Frequency response (+/-3dB)
|
120 Hz-20 KHz |
|
Bass extension(-6dB)
|
110 Hz |
| Cabinet Volume (in litres) | 0.52 L |
| Dimension (H*W*D)MM | 100*100*103 MM |
| Net weight (Kg) | 12 kg (Packed in a system, incl. subwoofer and 5pcs satellite speakers) |
| Standard accessories | Desk stand, User manual, guarantee certificate |
| Warranty | |
|---|---|
| Warranty Type | Manufacturers |
| Warranty Period | 1 Year |
