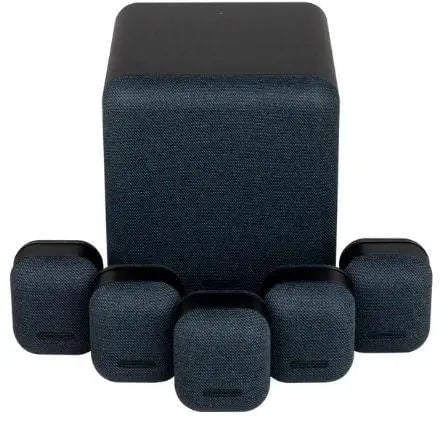

Monitor Audio Mass Surround Sound System 5.1 Ch Home theatre System
Product Description
- MASS Satellite :Two-way, sealed cabinet, tuned for wide dispersion and optimal integration with MASS Subwoofer.
- Rigid, braced and fibre-reinforced cabinet.
- Custom-weave cloth finish, unique to Monitor Audio.
- Compact design, with point-source acoustic alignment for precise audio focus and response.
- 31/2" (89 mm) Mid-Bass driver featuring; – MMP II (Metal Matrix Polymer) cone technology, – Advanced FEA simulation used to optimise the cone & motor unit performance
- Features a 3/4" (19 mm) soft dome tweeter with thermal protection.
- Mass Subwoofer : Compact, sealed enclosure with braced 15 mm MDF construction and rigid 18 mm MDF baffle.
- Custom-weave cloth finish grille.
- 8" (203 mm) long-throw driver with MMP II cone.
- 120 W Class-D amplification.
- Advanced limiters guarantee controlled, authentic sound.
- 3 pre-set modes (‘Music’, ‘Movie’, ‘Impact’).
The accessibility of premium-grade MASS Surround Sound Systemfrom Monitor Audio. Intended to convey full-scale sound constancy from minimal, jazzy speakers and a cautious subwoofer, MASS consolidates all Monitor Audio's honor winning skill with refined looks. The outcome is another degree of execution for music, gaming and film sound the same. The MASS Surround Sound system has been engineered to give full-scale audio fidelity from compact, elegant speaker cabinets that will augment any interior. Packing plenty of Monitor Audio’s acknowledged loudspeaker expertise inside a choice of sophisticated cloth covers, Monitor Audio 5.1 Ch Home Theater Speaker Package is a discreet, stylish system capable of truly immersive sound.
Soft Dome Tweeter
Whether paying attention to music, a game or a film soundtrack, the MASS Satellite speaker has the ability to rejuvenate your sound. On account of the flawlessly designed incorporation of its two drivers, the MASS Satellite is an extraordinary tune in from the most profound bass notes to the crispest high pitch. Mind boggling scattering and imaging put you in the focal point of the activity - and the satellite is as punchy and strong, and as unpretentious and nitty gritty, as you want it to be. Inside the bureau, a Metal Matrix Polymer (MMP II) mid/bass driver and delicate vault tweeter convey extraordinary full-range sound execution.
Deep Bass Compact Subwoofer
MASS MoviesÂ
MASS Gaming
MASS Music
Whether you like to tune in surround sound or favor a multi-channel blend, MASS has the ability to rejuvenate your number one music. Because of the perfectly designed combination between the Satellites and the Subwoofer, MASS is a completely exhilarating tune in from the most profound bass notes to the crispest high pitch. Mind boggling sound system imaging puts your number one artist on the focal point of the stage, while the mix of MMP II driver innovation and delicate vault tweeter in each Satellite gives each instrument uncommonly dedicated and persuading resonance.
Mount Bracket
The MASM Mount is the ideal answer for clients hoping to let loose floor or work area space. It permits situation on one or the other wall or roof and accompanies a rotating conjuncture association with permit helpful situating and is viable with the MASS surround sound speakerSatellite, Bronze 1, Radius 45 and Radius 90. MASS is quick and easy to set up and delivers genuinely enthralling surround sound excitement in a compact design, making any room feel like a state-of-the-art concert hall or cinema. Music lovers, movie fans and gamers will all revel MASS’s ability to put them in the middle of the action, bringing incredible levels of immersion to their favourite songs, films and games.
| IN THE BOX | |
|---|---|
| Sales Package |
5 Units Monitor Audio MASS Satellite Speakers (Front, Centre & Surround)
1 Units Monitor Audio MASS Subwoofer
5 Units MASM Mount BracketUsers Documentation |
| General | |
|---|---|
| Brand | Monitor-Audio |
| Model | MASS Surround Sound |
| Color | monitor-audio-midnight |
| Specifications of Monitor Audio MASS Surround Sound System | |
|---|---|
|
Speaker Use
|
Satellite Speaker |
|
System Format
|
2-Way |
| Frequency Response | 105 - 34,000 Hz |
| Sensitivity | 80 dB |
| Nominal impedance | 8 ohms |
| Minimum Impedance | 4.4 ohms @ 300 Hz |
| Maximum SPL | 98 dB (Pair) |
|
Power Handling (RMS)
|
30 W |
|
Power Handling (RMS) With Amplifier Crossover (150 Hz)
|
70 W |
| Recommended Amplifier Requirements | 25 – 100 W |
| Bass Alignment | Sealed Enclosure |
|
Crossover Frequency
|
3.0 kHz |
|
Drive Unit Complement
|
1 x 31/2" (89 mm) MMP II Mid-Bass Driver 1 x 3/4" (19 mm) Soft Dome Tweeter
|
|
Dimensions
|
147 x 122 x 107 mm (513/16 x 413/16 x 43/16") |
| Weight | 1.12 kg (2 lb 8 oz) |
| Specifications of Monitor Audio MASS Subwoofer | |
|---|---|
|
System Format
|
Sealed cabinet, 15 mm MDF construction with 18 mm base and front baffle
Internally braced with sealed amplifier compartment
|
|
Lower Frequency Limit
|
-3 dB @ 35 Hz / -10 dB @ 30 Hz (Free Field)
Default preset: Music, -3 dB @ 34 Hz / -10 dB @ 25 Hz (In Room)
|
| Upper Frequency Limit | -6 dB @ 150 Hz |
|
Drive Unit Complement
|
1 x 8" (200 mm) MMP II subwoofer driver featuring a 2" long throw voice coil |
| Linear Driver Excursion | 15 mm Peak to Peak |
| Amplifier Output | 120 W |
| Phase Control | 0 Degrees & 180 Degree pure Invert |
| Low Pass Filter Alignment | 2nd order (12 dB/Octave), from 50 Hz to 150 Hz |
| Auto Sensing Input Requirements | Line Level >3 mV Auto Standby feature after 20 minutes |
|
Audio Input/Outputs
|
LFE unbalanced input RCA
Stereo unbalanced inputs RCA
|
|
Connection
|
12 V Trigger in (3.5 mm mono mini-jack, 4v threshold) |
|
Power Consumption
|
Maximum 130 W, Standby <0.5 W (ErP compliance) |
|
External Dimensions (Including Amp, Drivers and Terminals (H x W x D))
|
340 x 320 x 350 mm |
| Weight | 10.2 kg |
| Warranty | |
|---|---|
| Warranty Type | Manufacturers |
| Warranty Period | 1 Year |
