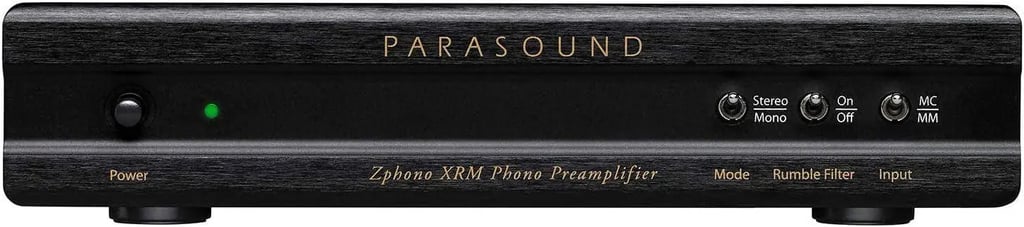

Parasound ZPhonoXRM Phono Preamplifier
star
star
star
star
star
(10 Reviews)
In Stock
₹74,500.00
₹75,000.00
check_circle
In Stock
visibility
234 people are viewing this right now
Shipping calculated at checkout.
Only 3 item(s) left in stock
check_circle
Product Description
check_circle
Supports both Moving Magnet (MM) and Moving Coil (MC) cartridges
check_circle
Separate MM and MC inputs with front-panel selector
check_circle
Selectable gain: 40?dB/50?dB for MM, 50?dB/60?dB for MC
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Supports both Moving Magnet (MM) and Moving Coil (MC) cartridges
- Separate MM and MC inputs with front-panel selector
- Selectable gain: 40?dB/50?dB for MM, 50?dB/60?dB for MC
- Continuously adjustable MC load from 50?? to 1050??
- High RIAA EQ accuracy within ±0.2?dB
- Very low THD (
| IN THE BOX | |
|---|---|
| Sales Package | Parasound ZPhonoXRM Phono Preamplifier |
| General | |
|---|---|
| Brand | Parasound |
| Model | ZPhonoXRM Phono |
| Color | black |
|
Frequency Response
|
20-20 kHz, +/- 0.2 dB |
|
Total Harmonic Distortion
|
0.02% at 1 kHz |
|
Signal to Noise Ratio, MM 40 dB Setting
|
> 94 dB, input shorted, IHF A-weighted
> 90 dB, input shorted, unweighted
|
|
Signal to Noise Ratio, MM 50 dB Setting
|
> 94 dB, input shorted, IHF A-weighted
> 90 dB, input shorted, unweighted
|
|
Signal to Noise Ratio, MC 50 dB Setting
|
> 92 dB, input shorted, IHF A-weighted
> 88 dB, input shorted, unweighted
|
|
Signal to Noise Ratio, MC 60 dB Setting
|
> 82 dB, input shorted, IHF A-weighted
> 80 dB, input shorted, unweighted
|
|
Inter-channel Crosstalk
|
> 80 dB at 1 kHz |
|
Input Impedance
|
MM: 47k ?
MC: 50-1050 ?
|
|
Input Capacitance
|
150 pF |
|
Output Impedance
|
Unbalanced: 150 ?
Balanced: 150 ? per leg
|
|
Input Sensitivity at 1 kHz, 4mV Input
|
40 dB: 5 mV for 500mV output
50 dB: 5 mV for 1.5 Volts output
60 dB: 5 mV for 3 Volts output
|
|
Input Sensitivity at 1 kHz, 1V Output
|
40 dB: 10 mV for 1.0 Volt output
50 dB: 3.5 mV for 1.0 Volt output
60 dB: 1.8 mV for 1.0 Volt output
|
|
Total Gain
|
40 dB / 50 dB / 60 dB (unbalanced output)
46 dB / 56 dB / 66 dB (balanced output)
|
|
Rumble Filter
|
40 Hz high pass, 18 dB /oct. |
|
AC Power Requirement
|
Standby: 0 watts
Power On: 7 watts
115 VAC or 230 VAC 50 - 60 Hz
(Selected on bottom)
|
| Dimension | |
|---|---|
| Dimension |
Width: 8.5 inch (220 mm)
Depth: 10inch (254 mm)
Depth: 12inch (305 mm) - cables connected
Height, with feet: 2inch (51 mm)
Height, without feet: 1.75inch (45 mm), 1U
|
| Weight | 1.8 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
