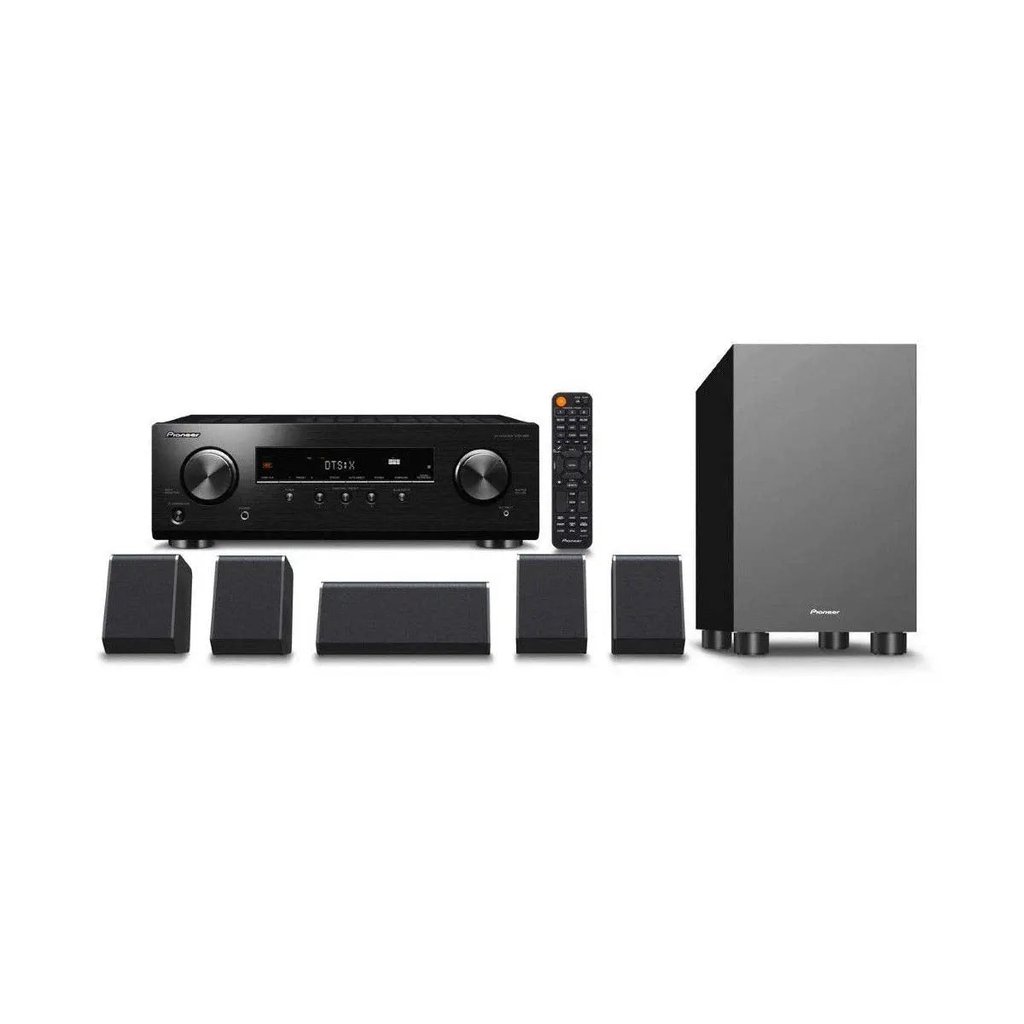

Pioneer HTP-076 Home Theater Package with 5.2-Channel AV Receiver

384 kHz/32-bit D/A Conversion with AK4438 (AKM)

Audio Return Channel (ARC) on HDMI

Phase Control

Advanced Sound Retriever (2ch)

Advanced Surround Modes: Classical, Unplugged, Entertainment Show, Drama, Extended Stereo, Extended Mono, Front Stage Surround Advance

HDMI 4 In (4 Assignable)

HDMI 1 Out

USB 1 in for Streaming Dongle

Audio 3 In (Assignable)

Digital Coaxial 1 In (Assignable)

Digital Optical 1 In (Assignable)

Subwoofer 2 Pre Out

ZONE B Line Out for Wireless Headphones

Speaker 6 ch (5 + SW) Out

FM Unbalanced Antenna 1 In

Power Requirements: AC 220-240 V, 50/60 Hz

Power Consumption/Standby: 465 W/0.2 W

Dimensions (W x H x D)/Weight:

– AV Receiver: 435 x 148 x 321 mm/8.0 kg
– – Centre Speaker: 220 x 97 x 100 mm/0.6 kg
– Surround Speaker: 90 x 131.5 x 108.5 mm/0.5 kg
– Subwoofer: 230 x 393 x 331 mm/4.6 kg

Front: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W)

Center: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W)

Surround: 7.7 cm Cone, 1-Way, Closed-Box Bookshelf Type (150 W)

Subwoofer: 16 cm Cone, Bass-Reflex Type (120 W)
