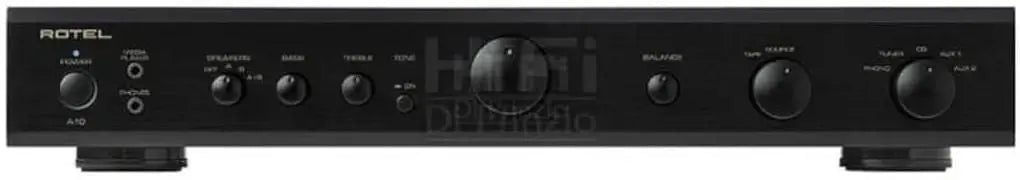

Rotel A10 Stereo Integrated Amplifier
star
star
star
star
star
(3 Reviews)
In Stock
₹62,700.00
₹62,899.99
check_circle
In Stock
visibility
2 people are viewing this right now
Shipping calculated at checkout.
Only 8 item(s) left in stock
check_circle
Product Description
check_circle
2 × 40 Watts of robust power
check_circle
Class AB amplifier design
check_circle
High current power supply
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- 2 × 40 Watts of robust power
- Class AB amplifier design
- High current power supply
- Moving magnet phono input for turntable connection
| IN THE BOX | |
|---|---|
| Sales Package | Rotel A10 Stereo Integrated Amplifier and User documentation |
| General | |
|---|---|
| Brand | Rotel |
| Model | A10 |
| Year | |
| Color | black |
| Dimension | |
|---|---|
| Dimension | 430 × 72 × 342mm |
| Weight | 5.9kg (13lbs.) |
| Specifications | |
|---|---|
|
Continuous Power Output
|
40W/Ch (All channels driven, 8Ω) |
| Total Harmonic Distortion | (20Hz–20kHz) <0.03% |
|
Frequency Response
|
Line Level Inputs: 10Hz - 40kHz ±1dB
Phono Input: 20Hz - 15kHz ±0.3dB
|
|
S/N Ratio (IHF "A" Weighted)
|
Line Level Inputs: 100dB
Phono Input: 80dB
|
|
Input Sensitivity
|
Line Level Inputs: 150mV
Phono Input (MM): 2.5mV
|
|
Input Impedance
|
Line Level Inputs: 24kΩ
Phono Input (MM): 47kΩ
|
| Input Overload |
Line Level Inputs: 5V
Phono Input: 180mV
|
|
Damping Factor
|
180 |
| Speaker Impedance | 4Ω minimum |
| Preout Level |
1V
|
|
Output Impedance
|
470Ω |
|
Tone Controls
|
±6dB at 100Hz / 10kHz |
|
Power Requirements
|
120V, 60Hz |
|
Power Consumption
|
220W |
| Warranty | |
|---|---|
| Warranty Type | Official Manufactures Warranty |
| Warranty Period | 2-year |
