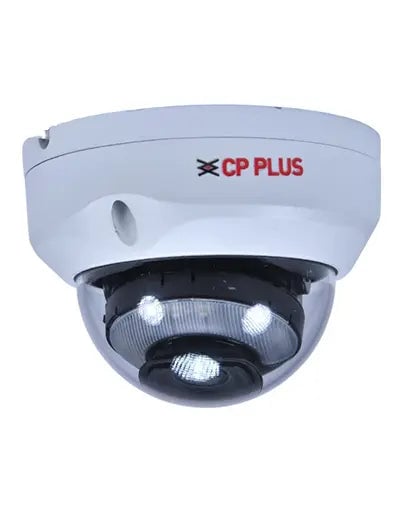

STQC | CP Plus 2 MP Dual-Light Vandal Dome Camera | CP-UNC-VC21L5C-VMD-LQ
The CP-UNC-VC21L5C-VMD-LQ is a high-performance, dual-light vandal dome camera, designed for demanding surveillance environments. It delivers full HD clarity, versatile night vision, and robust security features—all encased in a rugged, vandal-resistant housing.
Key Highlights
-
2 MP Full HD Imaging
Crisp 1920×1080 resolution with support for Quad streaming for flexible viewing. -
High-Sensitivity Sensor
1/2.7″ PS CMOS sensor with ultra-low light performance down to 0.0001 lux, and advanced Starlight imaging for enhanced clarity. -
Dual-Light Night Vision
Infrared illumination up to 50 m and warm light up to 30 m for true-color night footage. -
Smart Illumination
Intelligent IR control ensures optimal brightness and avoids glare or overexposure. -
Advanced Image Processing
Includes 120 dB WDR, Day/Night (ICR), 3D DNR, AWB, AGC, BLC, HLC, and digital watermarking for superior clarity and authenticity. -
Smart Features & Analytics
Perimeter protection with Tripwire, Intrusion, and SMD (Smart Motion Detection); plus Privacy Mask and Region-of-Interest (ROI) functionality. -
Built-In Audio & Storage
Integrated microphone with audio alerts; supports up to 512 GB micro-SD card for edge recording. -
Heavy-Duty Construction
IK10 vandal-resistant metal body and IP67 weatherproof rating—ideal for outdoor setups. -
Cyber-Security Built In
CP PLUS Trusted Core (CTC) technology ensures comprehensive protection with features like AES-256 encryption, secure boot, IP/MAC filtering, syslog support, and more. -
Effortless Connectivity
Powered via 12 V DC or PoE (802.3af) with dual backup capability—power failsafe without needing a reboot.
Technical Specifications
| Feature | Details | |
|---|---|---|
| Sensor | 1/2.7″ 2 MP PS CMOS | |
| Resolution | Up to 1920×1080 | |
| Min. Illumination | Color: 0.001 lux; B/W: 0.0001 lux; 0 lux with IR | |
| Lens | 3.6 mm fixed (F1.4) | |
| Viewing Angles | H: 87°, V: 44°, D: 105° | |
| IR / Warm Light Range | IR: 50 m | Warm Light: 30 m |
| Smart Imaging | WDR (120 dB), 3D DNR, BLC/HLC | |
| Night Mode | ICR with Auto/Manual IR control | |
| Streaming | Quad-stream; multiple resolutions supported | |
| Video Analytics | Tripwire, Intrusion, SMD | |
| Audio | Built-in mic; G.711, AAC codecs supported | |
| Cyber Security | AES-256, secure boot & upgrade, IP/MAC filter | |
| Network Protocols | ONVIF S/G/T, IPv4/6, HTTPS, SNMP v3, SFTP, TLS 1.2 | |
| Storage Options | micro-SD (≤ 512 GB), SFTP | |
| Power | PoE (802.3af) / 12 V DC (Dual powered) | |
| Power Consumption | Idle: ~2.1 W (DC), Max: ~6.2 W | |
| Weather & Vandal Rating | IP67, IK10 | |
| Operating Range | –40 °C to +60 °C; ≤ 95% humidity | |
| Dimensions & Weight | 81 × 109.9 mm; 350 g |
Product Summary
The CP-UNC-VC21L5C-VMD-LQ is a rugged yet intelligent dome camera, combining full HD video, smart dual-light illumination, strong cybersecurity, and environmental resilience. It’s the ideal choice for secure installations in commercial, industrial, and outdoor environments.
