STQC | CP Plus IP 4MP VariFocal 60m Bullet CCTV | CP-UNC-TE41ZL6C-VMDS-Q

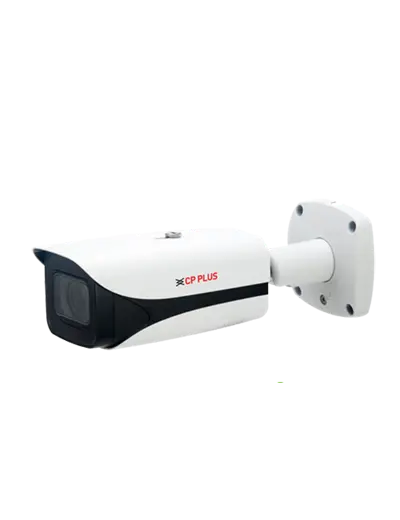

CP‑UNC‑TC41ZL6C‑VMD‑LQ – 4 MP Dual Light Bullet Camera (60 m IR)

🔍 Image Sensor & Resolution

• 1/2.9” 4 MP PS CMOS sensor (0.94 cm)

• Up to 2688 × 1520 at 20 fps, or 2560 × 1440 at 25/30 fps (cpplusworld.com)

• Excellent low-light performance: 0.001 lux (Color @ F1.4), 0.0001 lux (B/W), or 0 lux using IR

💡 Imaging & Lens

• WDR (120 dB), Day/Night (ICR), 3D‑NR, ROI, AWB, AGC, HLC, BLC, digital watermarking

• Motorized varifocal lens (2.7–13.5 mm) for flexible zoom & focus

• Dual‑Light feature: Warm light (up to 30 m) plus IR illumination (up to 60 m) ensures high clarity in total darkness

🎥 Video Encoding & Compression

• Supports Instastream, H.265, H.264+, H.264, H.264H, H.264B, and MJPEG (sub-stream only)

• Quad‑streaming enables simultaneous main, sub, and mobile streams

🔐 Smart & Security Features

• Built‑in microphone for audio capture

• IP grade IP67 (water & dust resistant); optional IK10 vandal-resistant version available

• Supports SMD, Tripwire, Intrusion, Face detection, People counting, Queue detection, Loitering; integrates with AI NVRs for refined event search

• Robust cybersecurity: AES‑256 encryption, configuration encryption, trusted boot/execution, HTTPS, IP/MAC filtering, account lockout, WSSE, syslog

🌐 Network Protocols & Remote Access

• Protocol support: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, SMTP, FTP, DHCP, DNS, DDNS, NTP, SNMP v3, UPnP, 802.1x, ICMP, IGMP, RTMP, Multicast, SMTP, PPPoE (cpplusworld.com)

• Compatible with ONVIF Profile S/G/T, CGI, Milestone, Genetec platforms; remote access via InstaOn, iCMOB/gCMOB mobile apps, and KVMS Pro CMS

⚡ Power & Consumption

• Can be powered via 12 V DC or PoE (802.3af)

• Power usage: 2.6 W (12 VDC) / 3.1 W (PoE) idle; up to 10.2–12.7 W with WDR, intelligence, and illumination on

📦 Physical Specs

• Dimensions: ~244 × 244 × 90 mm; Weight: ~900 g (deltonglobal.com)

• Operating temperature: –30 °C to +60 °C, humidity up to 95%

🔄 Local Storage

• Supports Micro SD card (up to 256 GB, not included); plus external storage via FTP, SFTP, NAS

🚨 Use Case & Key Advantages

• Ideal for outdoor surveillance, with strong night vision and adaptability to changing lighting (dual-light + WDR)

• Smart analytics reduce false alarms and deliver refined human/vehicle detection

• Flexible zoom and wide coverage (starlight + IR) make it perfect for large perimeters, building exteriors, or parking zones

•
