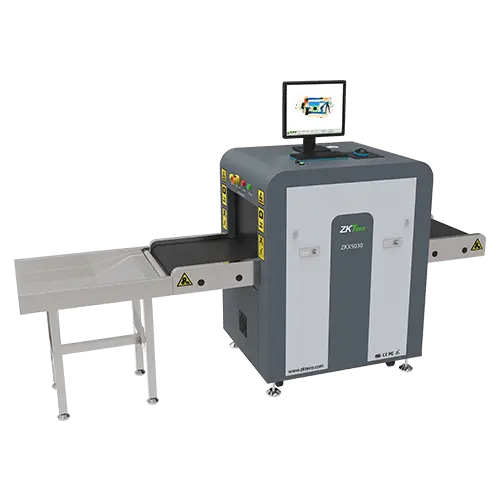

X-ray Baggage Scanner ZKX5030A ZKTeco

Parameters

• Speed

  0.20 m/s

• Height of Transmission Belt

  730 mm

• Maximum Load

  ≤120 Kg (Adequate distribution)

• Wire Resolution

  34 AWG (0.16mm metal wire)

• Space Definition

  Horizontal Φ1.0mm \ Vertical Φ2.0mm

• Penetrate Definition

  32 AWG

• Penetration

  8 mm Steel board

• Monitor

  21.5 inch LED

• System Function

  High density alarm, TIP, Luggage counter, System running timer, X-ray emitting timer, System maintainance, Training, 64 times continuous zoom in

• Film Safety

  ASA / ISO1600 standard of film safety

• Supported Software

  ZKBio SIS

• Communication Interface

  RJ45 (TCP/IP)

• Cooling

  Seal oil cooling / 100%

• Single Inspection Dosage Rate

  ≤1.0 μ Gy

• Device Size (L*W*H)

  1701mm * 796mm * 1150 (mm)

• Package Size (L*W*H)

  1900mm * 990mm * 1485 (mm)

• Package Weight

  410 KG

• Power Consumption

  1 kVA

• Noise

  53.8 dB (A)
