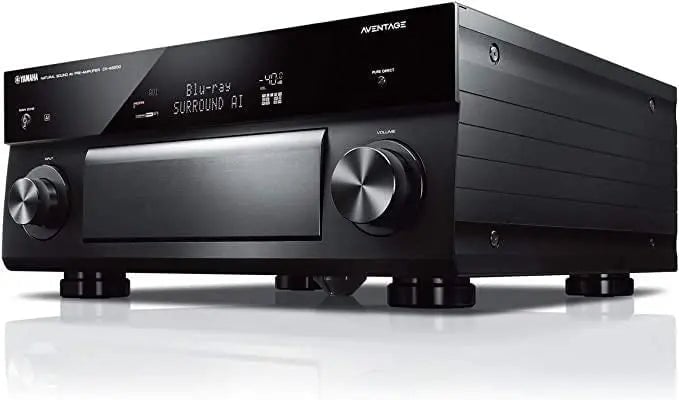

Yamaha Cx-a5200 Aventage 11.2-ch Av Preamplifier With 4k ultra Hd
star
star
star
star
star
(10 Reviews)
Out of Stock
₹221,490.00
₹223,490.01
cancel
Out of Stock
visibility
659 people are viewing this right now
Shipping calculated at checkout.
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- AVENTAGE 11.2-channel pre-amplifier.
- SURROUND:AI automatically optimises the surround effect in real time.
- Dolby Atmos and DTS:X with CINEMA DSP HD3.
- HDMI® (7 in / 3 out) with Dolby Vision™ and Hybrid Log-Gamma.
- Studio-grade ESS DAC (ES9026 PRO x 2).
- MusicCast multi-room technology.
- Amazon Alexa and Google Assistant voice control compatibility* (*Availability varies by region).
| IN THE BOX | |
|---|---|
| Sales Package | Yamaha AVENTAGE CX-A5200 - 11.2-Channel AV Preamplifier with MusicCast and User documentation |
| General | |
|---|---|
| Brand | Yamaha |
| Model | CX-A5200 |
| Color | black |
| Dimension | |
|---|---|
| Dimension | 435 x 193 x 474 mm (with antenna up: 435 x 270 x 474 mm) |
| Weight | 15.2 kg; 33.5 lbs. |
| Specifications | |
|---|---|
| Surround Sound Processing |
Surround:AI: Yes
CINEMA DSP: Yes (HD3)
DSP Programs: 34
Dialog Level Adjustment:
Virtual Presence Speaker: Yes (with Virtual Rear Presence Speakers)
Virtual Surround Back Speaker: Yes
Dialogue Lift: Yes (no presence speakers required)
SILENT CINEMA / Virtual CINEMA DSP: Yes (Virtual CINEMA FRONT)
Dolby Atmos: Yes
Dolby TrueHD: Yes
Dolby Digital Plus: Yes
Dolby Digital: Yes
DTS:X: Yes
DTS-HD Master Audio: Yes
|
| Audio Features |
File Format: MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Pure Direct: Yes (with video on mode)
Compressed Music Enhancer: Yes
High-resolution Music Enhancer: Yes
YPAO multi-point measurement: Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement
YPAO Volume: Yes
Adaptive DRC (Dynamic Range Control): Yes
Initial Volume & Maximum Volume Setting: Yes
A.R.T. Wedge: Yes
Audio Delay: Yes (0-500 ms)
DA Converter: ESS 384 kHz / 32-bit SABRE PRO Premier DACâ„¢ ES9026PRO x 2 (for all channels incl. presence speakers)
|
| Video Features |
4K Ultra HD Pass-through and upscaling: Yes (4K / 60p, 4:4:4)
HDMI 3D passthrough: Yes
HDMI eARC: Yes (via firmware update)
HDMI Audio Return Channel: Yes
Component upconversion: Yes
HDMI upscaling: Yes (Analogue to HDMI / HDMI to HDMI)
Video adjustment: Yes
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync: Yes
|
| Connectivity |
MusicCast Surround:
HDMI Input/Output: 7 / 3 (HDCP2.3, HDR10 / Dolby Vision / HLG and BT.2020 compatible)
HDMI CEC: Yes (SCENE, Device Control)
USB Input: USB Memory, Portable Audio Player
Network Port: Yes
Wi-Fi: Yes (2.4 / 5 GHz)
AirPlay: Yes (AirPlay 2 via firmware update)
Bluetooth: Yes
Front AV Input: USB / Analogue Audio
Digital Audio Input/Output: Optical: 3 / 0
Digital Audio Input/Output: Coaxial: 3 / 0
Analog Audio Input/Output: XLR Balance: 1 / 0, RCA Unbalance: 9 (front 1) / 0
Phono Input: Yes
XLR Terminal: Yes
Component Video Input/Output: 2 / 0
Composite Video Input/Output: 4 / 0
PreoutHeadphone Output: XLR Balance: 11.2 ch, RCA Unbalance: 11.2 ch
Headphone Output: 1
|
| Tuner Section |
FM/AM Tuner: Yes (FM only)
DAB Tuner: Yes (Availability varies by region.)
|
| User Interface |
On-screen display: Graphical User Interface
SCENE: SCENE PLUS (8 sets)
App Control: Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control: Yes
Remote Control Unit: Yes (Full LED Backlight)
|
| Zone Control |
Zone 2 Audio Output: Preout / HDMI
Zone 3 Audio Output: Preout
Zone 4 Audio Output: HDMI
Zone Video Output: HDMI / Component / Composite
Zone HDMI: Yes (Advanced HDMI Zone Switching)
Zone B Output: HDMI
Zone GUI: Yes
RS-232C Interface: Yes
+12V Trigger Output: 2
Remote (IR) Input/Output: 1 / 1
Party Mode: Yes
|
| General |
Standby Power Consumption (IR only): ≤ 0.1W
Auto Power Standby: Yes
ECO mode: Yes
Dimensions (W x H x D): 435 x 193 x 474 mm (with antenna up: 435 x 270 x 474 mm); 17-1/8†x 7-1/2†x 18-5/8†(with antenna up: 17-1/8†x 10-5/8†x 18-5/8â€)
Weight: 15.2 kg; 33.5 lbs.
|
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 Year |
