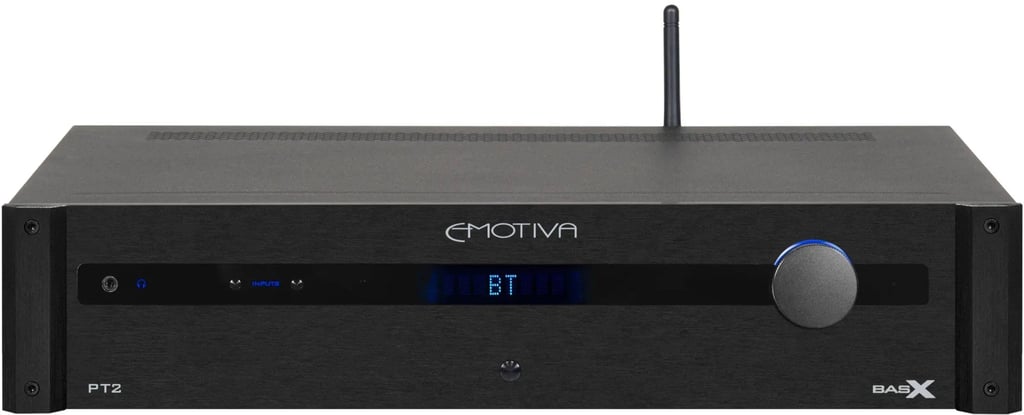

Emotiva BasX PT2 Stereo Preamp
star
star
star
star
star
(10 Reviews)
In Stock
₹108,500.00
₹110,500.00
check_circle
In Stock
visibility
528 people are viewing this right now
Shipping calculated at checkout.
Only 7 item(s) left in stock
check_circle
Product Description
check_circle
High-quality pure analog design for optimal sound reproduction
check_circle
Low-noise, high-performance preamplification
check_circle
Multiple input options (XLR and RCA)
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- High-quality pure analog design for optimal sound reproduction
- Low-noise, high-performance preamplification
- Multiple input options (XLR and RCA)
- HT bypass for easy home theater integration
- Precision volume control for smooth adjustments
- High-quality components for reliability and performance
| IN THE BOX | |
|---|---|
| Sales Package | Emotiva BasX PT2 Stereo Preamp |
| General | |
|---|---|
| Brand | Emotiva |
| Model | BasX PT2 |
| Color | black |
|
Analog Inputs
|
4 pairs - stereo analog line level inputs (Analog 1 thru Analog 4).
1 pair - stereo phono inputs (switchable; moving magnet or moving coil).
1 set – Home Theater Bypass inputs (front main channels plus subwoofer).
Tuner - FM (with external antenna input; 15 station presets).
|
|
Digital Inputs
|
1 - digital coax (S/PDIF); 24/192k.
2 - digital optical (Toslink); 24/192k.
1 - digital USB (DAC input); 24/192k.
1 - Bluetooth receiver up to 96k (Bluetooth 5, with AptX, AptX HD, and AAC support, antenna included).
|
|
Preamp Outputs
|
1 pair - line level main outputs (can be configured to be either Full Range or Bass Managed; Bass Managed has 12 dB/octave active analog high-pass filter with cutoff configurable between 40 Hz and 200 Hz.)
1 - summed subwoofer output (can be configured to be either Full Range or Bass Managed; Bass Managed has 12 dB/octave active analog low-pass filter with cutoff configurable between 40 Hz and 200 Hz.)
1 - high performance stereo headphone output.
|
|
Analog Performance (line level)
|
Maximum output level: 4 VRMS.
Frequency response: 5 Hz to 50 kHz +/- 0.04 dB.
THD+noise: < 0.001% (A-weighted).
IMD: < 0.004% (SMPTE).
S/N ratio: > 120 dB.
Crosstalk: < 90 dB.
|
|
Analog Performance (phono)
|
Frequency response (MM and MC): 20 Hz to 20 kHz; ref standard RIAA curve.
THD+noise: < 0.015% (MM; A-weighted); < 0.06% (MC; A-weighted).
S/N ratio: > 78 dB (ref 5 mV; MM); > 58 dB (ref 0.5 mV; MC).
Gain (ref unity gain on main outputs at 1 kHz): 44 dB (MM); 55 dB (MC).
Load impedance: 47 kOhms (moving magnet); 47 Ohms or 100 Ohms (moving coil).
|
|
Analog Performance (headphone)
|
Power Output:
8 Ohms: 23 mW / channel.
33 Ohms: 90 mW / channel.
47 Ohms: 127 mW / channel.
150 Ohms: 145 mW / channel.
300 Ohms: 114 mW / channel.
600 Ohms: 75 mW / channel.
|
|
Digital Performance
|
Frequency response:
5 Hz to 20 kHz +/- 0.15 dB (44k sample rate).
5 Hz to 80 kHz +/- 0.25 dB (192k sample rate).
THD+noise: < 0.003% (A-weighted; all sample rates).
IMD: < 0.007% (SMPTE).
S/N ratio: > 110 dB ref rated output.
|
|
Trigger
|
Trigger Input: accepts inputs between 5V and 12V AC or DC.
12 VDC trigger output.
|
|
Power Requirements
|
Universal SMPS which accepts anywhere between 100 VAC and 240 VAC. |
|
Controls and Indicators
|
Power: rocker switch; rear panel.
Standby: one front panel pushbutton.
Two front panel pushbuttons: Input Select; menu operation.
One front panel knob: Volume; Tuning; menu operation.
Display: high visibility blue alphanumeric VFD display (dimmable).
Remote Control: compact full-function infrared remote control (AAA batteries required).
LEDs: amber Standby LED; blue illuminated legends for Input buttons and Headphone output.
|
| Dimension | |
|---|---|
| Dimension | 17” wide x 4” high x 13-1/2” deep |
| Weight | 5.4 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
