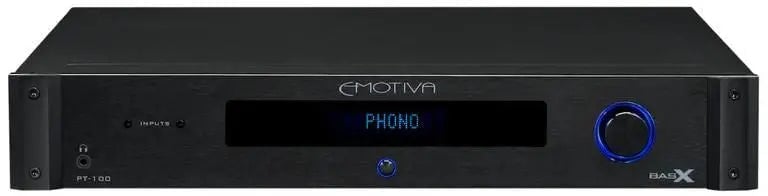

Emotiva PT-100 - Stereo Pre-Amplifier/DAC/Tuner
star
star
star
star
star
(10 Reviews)
In Stock
₹49,200.01
₹49,500.00
check_circle
In Stock
visibility
422 people are viewing this right now
Shipping calculated at checkout.
Only 4 item(s) left in stock
check_circle
Product Description
check_circle
Two stereo analog line-level inputs (CD, Aux)
check_circle
Stereo phono input for MM/MC cartridges
check_circle
FM tuner with external antenna and 50 presets
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- Two stereo analog line-level inputs (CD, Aux)
- Stereo phono input for MM/MC cartridges
- FM tuner with external antenna and 50 presets
- Coaxial and optical digital inputs (up to 24-bit/192kHz)
- USB DAC input (up to 24-bit/96kHz, driverless)
- Optional Bluetooth receiver (AptX dongle required)
| IN THE BOX | |
|---|---|
| Sales Package | Emotiva PT-100 - Stereo Pre-Amplifier/DAC/Tuner |
| General | |
|---|---|
| Brand | Emotiva |
| Model | PT-100 |
| Color | black |
|
Analog Inputs
|
2 pairs: stereo analog line level inputs (CD, Aux).
1 pair: stereo phono inputs (switchable; moving magnet or moving coil).
1 tuner: FM (with external antenna input; 50 station presets).
|
|
Digital Inputs
|
1 pair: main line level output; stereo, unbalanced.
2: summed full range outputs (for connecting one or two subwoofers), unbalanced.
1: stereo headphone output (front panel).
|
|
Analog Performance (phono)
|
Frequency response (MM and MC):
20 Hz to 20 kHz; ref standard RIAA curve.
THD+noise:
< 0.015% (MM; A-weighted).
< 0.06% (MC; A-weighted).
S/N ratio:
> 90 dB (MM).
> 68 dB (MC).
|
|
Analog Performance (headphone)
|
Output Power:
8 Ohms: 23 mW / channel.
33 Ohms: 90 mW / channel.
47 Ohms: 127 mW / channel.
150 Ohms: 145 mW / channel.
300 Ohms: 114 mW / channel.
600 Ohms: 75 mW / channel.
|
|
Digital Performance
|
Frequency response:
5 Hz to 20 kHz +/- 0.15 dB (44k sample rate).
5 Hz to 80 kHz +/- 0.25 dB (192k sample rate).
THD+noise:
< 0.003% (A-weighted; all sample rates).
IMD:
< 0.007% (SMPTE).
S/N ratio:
> 110 dB ref rated output.
|
|
Trigger
|
12 VDC trigger output. |
|
Power Requirements
|
115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected). |
|
Controls And Indicators
|
Power: rocker switch; rear panel.
Standby: one front panel push button; halo ring changes color to indicate status.
Two front panel pushbuttons: Input Select; menu operation.
One front panel knob: Volume; Tuning; menu operation.
Display: high visibility blue alphanumeric VFD display (dimmable).
Remote Control: compact full-function infrared remote control.
Menu and Control System; simplified, highly intuitive menu system
(includes Setup options, Bass, Treble, and Balance controls).
|
| Dimension | |
|---|---|
| Dimension | 17” wide x 2-5/8” high x 12-1/2” deep |
| Weight | 4 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
