Emotiva

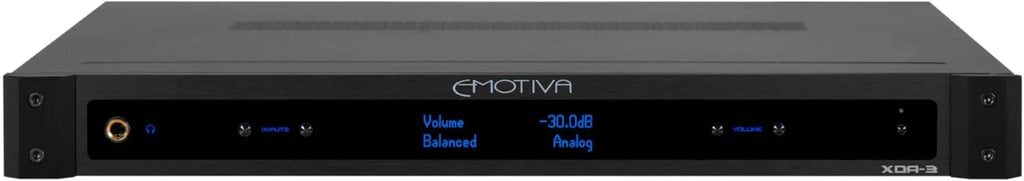

Emotiva XDA-3 Differential Reference DAC / Preamp
star
star
star
star
star
(10 Reviews)
In Stock
₹139,500.00
₹140,500.00
check_circle
In Stock
visibility
556 people are viewing this right now
Shipping calculated at checkout.
Only 6 item(s) left in stock
check_circle
Product Description
check_circle
High-performance differential DAC architecture for low distortion and high fidelity.
check_circle
Multiple input options: USB (24-bit/192kHz), optical, coaxial, and AES/EBU.
check_circle
Full-range preamp with a fully balanced architecture for both analog and digital signals.
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- High-performance differential DAC architecture for low distortion and high fidelity.
- Multiple input options: USB (24-bit/192kHz), optical, coaxial, and AES/EBU.
- Full-range preamp with a fully balanced architecture for both analog and digital signals.
- Balanced XLR outputs for clean, noise-free signal transmission.
- Powerful headphone amplifier with a front-panel jack.
- Precision volume control for accurate sound tuning.
- Premium components, including precision resistors and capacitors.
| IN THE BOX | |
|---|---|
| Sales Package | Emotiva XDA-3 Differential Reference DAC / Preamp |
| General | |
|---|---|
| Brand | Emotiva |
| Model | XDA-3 |
| Color | black |
|
Inputs:
|
2 - Coaxial S/PDIF digital audio inputs.
2 - Toslink optical S/PDIF digital audio inputs.
1 - HDMI-ARC digital audio input
1 - High performance USB digital audio input.
1 pair - Balanced XLR analog audio input.
1 pair - Unbalanced RCA analog audio input.
|
|
Outputs:
|
1 pair - Main Outputs (stereo; balanced / XLR), variable level.
1 pair - Main Outputs (stereo; unbalanced / RCA), variable level.
1 - Headphone output, 1/4” stereo, front panel
|
|
Rated Output:
|
2.0 V RMS (RCA).
4.0 V RMS (XLR).
|
|
Analog Signal Path:
|
Frequency Response: 10 Hz to 55 kHz +0 /- 0.2 dB.
Signal to Noise (S/N) Ratio: > 110 dB.
Crosstalk: < 91 dB.
THD: < 0.001% at 1 kHz.
THD: < 0.0015% 20 Hz to 20 kHz.
IMD: < 0.0005%.
|
| Frequency Response: | 20 Hz to 20 kHz +/-0.1 dB (44.1k and above sample rates). |
| S/N Ratio: | > 95 dB (44.1 kHz sample rate). |
| S/N Ratio: | > 110 dB |
|
Crosstalk:
|
< 100 dB. |
| THD: | < 0.0035% (16 bits). |
| Trigger Input; | Trigger Output (output +12V DC; input 5-12 V AC/DC). |
|
Power Requirements:
|
115 VAC or 230 VAC +/- 10% @ 50 / 60 Hz (automatically detected and switched). |
| Dimension | |
|---|---|
| Dimension | 17” wide x 2.25” high x 13.5” deep |
| Weight | 4 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
