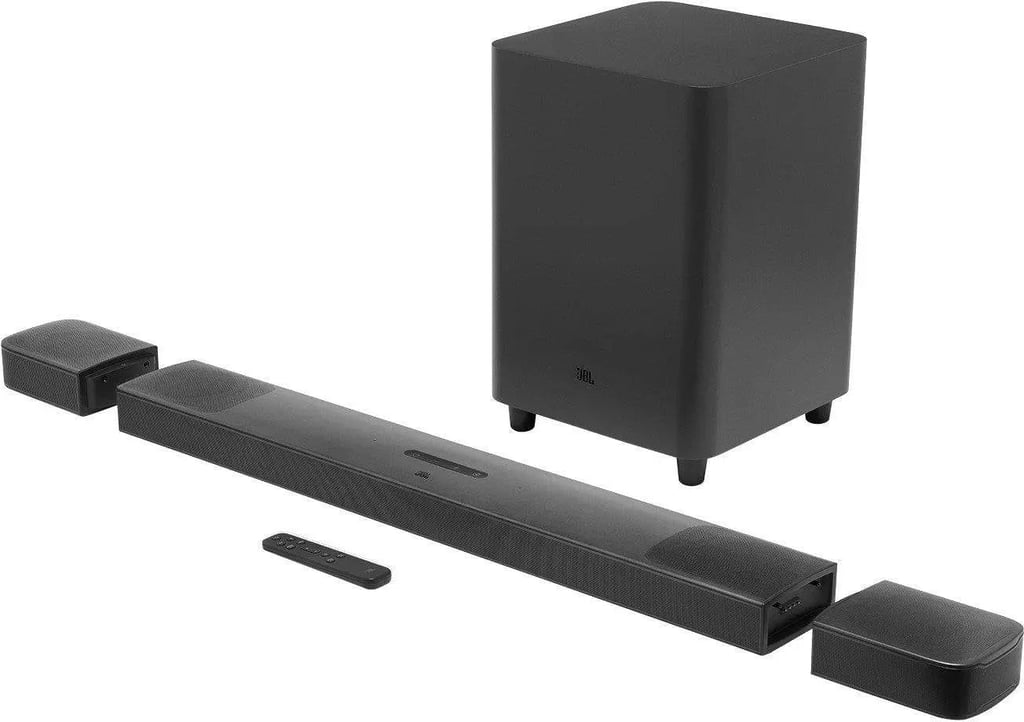

Jbl Bar 9.1 true Wireless Sound Soundbar With Dolby Atmos, Detachable Wireless Speakers

IN THE BOX

Sales Package

1x Main Soundbar, 2x Detachable wireless surround speakers, 1x Wireless Subwoofer, Remote control with 2 x batteries, Power cord (up to 8 pieces, depending on regional SKU), HDMI cable x1, 2 x bracket L-shaped wall mount (Main Bar) + 2 x bracket U-shaped wall mount (for Speaker Surround) with screws, Quick start guide, Guarantee card, Safety Guide Sheet, Side cover (4x piece)

General

Brand

JBL

Model

Bar 9.1 JBLBAR913DBLKAM

Color

black

Specifications

Sound system

5.1.4 system

Power supply

100–240 V AC, ~50/60 Hz

Battery charging time

3 hours

Total speaker power output

820W

Speaker output power

400W

Surround speaker output power

2*600W

Subwoofer output power

300W

Soundbar Transducer

4 × racetrack driver + 2 × driver with wide reach pointing up + 3 × 0.75 ”(20mm) tweeter

Surround transducer (per section)

driver with a wide reach pointing upwards + 0.75 "(20mm) tweeter

Transduser Subwoofer

10”

Operating temperature

0°C - 45°C

Standby for Soundbar (when all wireless connections are disabled)

<0.5 W

Network standby (Soundbar)

<6.0 W

Standby in network (Subwoofer)

<2.0 W

Time to standby

<10 minutes

Audio Specifications

Input Video HDMI

1

HDMI Video output (with enhanced Audio ReturnChannel, eARC)

1

HDMI HDCP version

2.3

Maximum SPL

103db

Frequency response

34Hz - 20KHz

Input audio

1 Optik, Bluetooth, Chromecast, AirPlay2, USB

Control and Connection Specifications

Port USB

Type A

Rating USB

5 V/ 500 mA

Supported file formats

MPEG 1 Layer 2/3, MPEG 2Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16 KHz - 48 KHz

MP3 bitrate

80 kbps - 320 kbps

Bluetooth Version

4.2

Profl Bluetooth

A2DP V1.2, AVRCP V1.5

Bluetooth frequency range

2.402–2.480 MHz

Modulation Type

GFSK, π/4 DQPSK, 8DPSK

Wi-Fi network

IEEE 802.11 a/b/g/n/ac (2,4 GHz/5 GHz)

Max. Transmit power 2.4G Wi-Fi

20 dBm (EIRP)

2.4G Wi-Fi frequency range

2412 – 2472MHz (Pita ISM 2,4 GHz, AS 11 Saluran, Eropa dan 13 Saluran lainnya)

Modulation Type

DBPSK, DQPSK, CCK, QPSK,BPSK, 16QAM, 64QAM

Modulation Type

DBPSK, DQPSK, CCK, QPSK,BPSK, 16QAM, 64QAM

Transmission Maximum Wi-Fi 5G

22 dBm (EIRP)

Dimension

Modulation Type

QPSK, BPSK, 16QAM,64QAM, 256QAM

Wireless 5G frequency range:

5180.0 ~ 5240.0 MHz, 5725.0 ~ 5825.0 MHz

Maximum emission of 5G

13 dBm (EIRP)

Surround Speakers

173 x 60 x 120 mm/6,8 x 2,4 x 4.7 inci

Soundbar

884 x 62 x 120 mm / 34,8 x 2,4 x 4,7 inci

Subwoofer

305 x 440 x 305 mm/12,0 x 17,3 x 12,0 inci

Soundbar Weight

3,64 kg/ 8,0 lb

Surround Speaker Weight

0.72 kg x 2 / 1.6 lb x2

Subwoofer Weight

11,10 kg/ 24,5 lb

Warranty

Warranty Type

Manufacturer's Limited

Warranty Period

1 Year Warranty
