Rotel

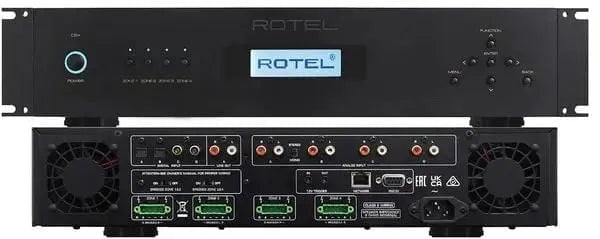

Rotel C8+ 8-channel Distribution Amplifier
star
star
star
star
star
(3 Reviews)
In Stock
₹323,800.00
₹325,900.00
check_circle
In Stock
visibility
1 people are viewing this right now
Shipping calculated at checkout.
Only 3 item(s) left in stock
check_circle
Product Description
check_circle
8 x 150 Watts of robust Class AB power, 4 Ohms
check_circle
Class AB amplifier Design
check_circle
Custom engineered toroidal transformer
1
100% Original Guarantee
Secure Payment
GST Invoice Available
Free Next Day Delivery
if order by 2 PM
24/7 Customer Support
GUARANTEE SAFE & SECURE CHECKOUT
Product Description
- 8 x 150 Watts of robust Class AB power, 4 Ohms
- Class AB amplifier Design
- Custom engineered toroidal transformer
- 4 individual 24-bit/192kHz Digital to Analogue Converters
| IN THE BOX | |
|---|---|
| Sales Package | Rotel C8+ 8-channel Distribution Amplifier and User documentation |
| General | |
|---|---|
| Brand | Rotel |
| Model | C8+ |
| Year | |
| Color | black |
| Dimension | |
|---|---|
| Dimension | 430 × 97 × 414mm |
| Weight | 18.35kg (40.79lbs.) |
| Specifications | |
|---|---|
|
Maximum Power Output
|
150W/Ch (8 channels driven, 4Ω) |
| Continuous Power Output | 100W/Ch (8 channels driven, 8Ω) |
| Total Harmonic Distortion (THD) | <0.1% |
|
Frequency Response
|
Line Level Inputs: 10Hz - 100kHz, +0dB, 0 ± 0.5dB
Digital Inputs: 10Hz - 20kHz, 0 ± 0.5dB
|
|
S/N RATIO (IHF "A" Weighted)
|
Line Level Inputs: 100dB
Digital Inputs: 102dB
|
| Gain | 26dB |
| Intermodulation Distortion (60Hz:7kHz, 4:1) | <0.01% |
|
Damping Factor
|
80 |
| Tone Controls | ±10dB at 100Hz / 10kHz |
| Crosstalk/Separation | >50dB |
| Digital to analo Instruments | Texas Instruments |
|
Input Sensitivity
|
Line Level Inputs: 0.43V
Digital Inputs: -13.5dBfs
|
|
Input Impedance
|
Line Level Inputs: 31kΩ
Digital Inputs: 75Ω
|
| Input Overload | Line Level Inputs (RCA): 2.8V |
| Optical Digital Signals | SPDIF LPCM (up to 192kHz/24-bit) |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturers Warranty |
| Warranty Period | 2-year |
