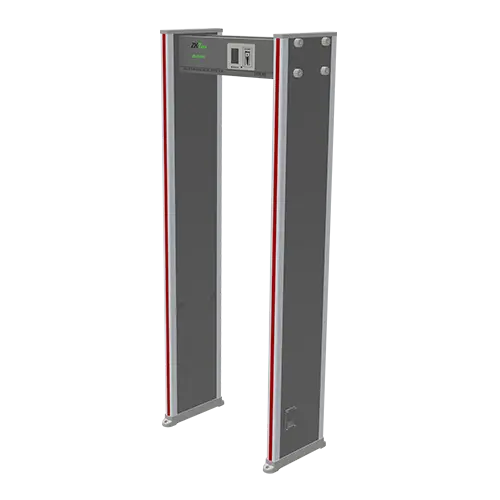

ZKTeco Door Frame Metal Detector ZK-D1065

Parameters

• Display

  3.5'' TFT Color Screen

• Physical Keypad

  4 keys

• Detection Zone

  6 / 12 /18 zones mode adjustable

• Sensitivity Level

  500

• Channel

  100

• Smallest Metal Objects Detected

  Coin-sized Metals

• Maximum Detection Distance

  Vertical 20-2000 mm

• Detection Sound Alert

  6 types of alarm tones (adjustable)
  0-6 levels of volume adjustable (Maximum volume 80 dB)

• Detection Visual Indicator

  2 sets of LEDs (red) are evenly distributed on the left and right door panels
  LED (Steady red= metal contraband detected)

• Throughput

  >40 persons per minute

• Self-diagnosis Program

  Yes

• Detection Mode

  Automatic Detection Mode/ Infrared Detection Mode (default)

• Number of IR Groups

  2

• Detected Contrabands

  Ferrous and non-ferrous metal weapons

• Enclosure Material

  Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC

• Power Supply

  AC100V to 240V (DC12V/3A)

• Input Voltage

  DC12V

• Operating Current

  1.4A

• Operating Power

  16W

• Operating Time (Estimated)

  24/7 operation capability (continuous operation)

• Operating Frequency

  5.7KHz ~ 9.6KHz

• Operating Temperature

  -20°C ~ 55°C

• Storage Temperature

  -25°C ~ 60°C

• Operating Humidity

  <95% RH (non-condensing)

• Ingress Protection Rating

  N/A (waterproof and dustproof)
  N/A (vandal resistant)

• Application Environment

  Indoor

• Dimensions (L*W*H)

  2213 * 831 * 471 (mm)

• Lane Size (L*W*H)

  2000*710*399 (mm)

• Dimensions with Packaging (L*W*H)

  2266 * 540 * 270 (mm)

• Gross Weight

  42kg

• Net Weight

  35kg

• Interface

  Relay Output: NO
  Network Interface: NO

• Certifications

  CE, FCC, ISO9001

• Remote Control

  NO
