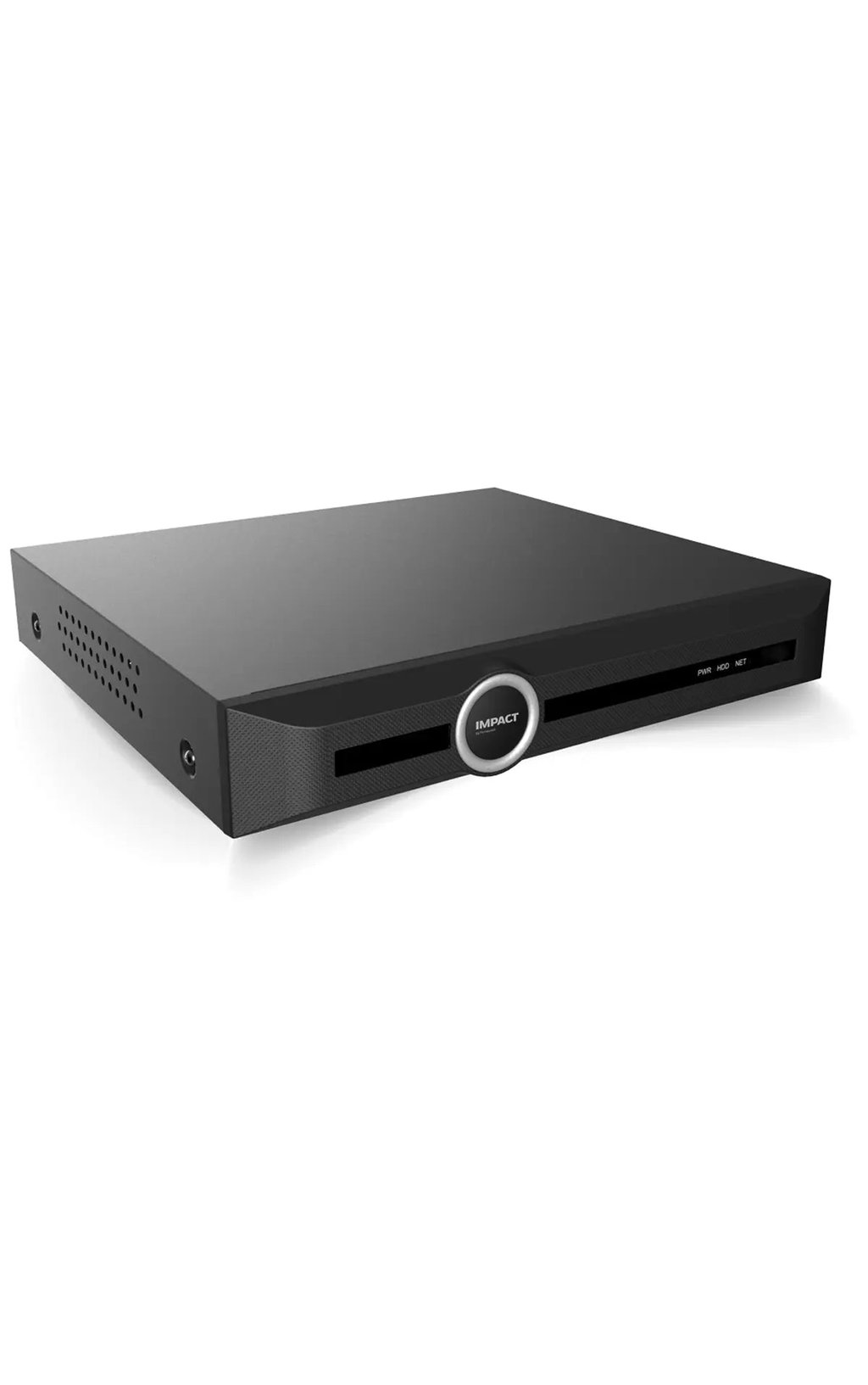

Honeywell 20 Channel 4K NVR | I-HNVR-1120

The Honeywell I-HNVR-1120 is a powerful and scalable 20-channel Network Video Recorder (NVR) designed for medium to large CCTV installations. With support for up to 8MP cameras, 4K display output, and high bandwidth capacity, it ensures smooth recording, efficient storage, and reliable monitoring.

🔑 Key Features

✔ 20 Channel IP Camera Support
✔ Supports up to 8MP Resolution Recording
✔ Advanced IH+265 / H.265 / H.264 Compression
✔ 4K HDMI Output + VGA Output
✔ 1 SATA HDD Support (Up to 10TB)
✔ ONVIF Compatible (Third-party camera support)
✔ Plug & Play Operation

🎯 Video & Performance

• Video Input: 20 Channels

• Maximum Resolution: Up to 8MP

• Incoming Bandwidth: 80 Mbps

• Outgoing Bandwidth: 80 Mbps

• Multi-channel live view & playback

🖥 Video Output

• HDMI Output: Up to 4K (3840 × 2160)

• VGA Output: Up to 1080p

• Simultaneous HDMI & VGA display

• Screen Split Modes:
  1 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 13 / 16 / 20

💾 Storage

• HDD Interface: 1 SATA Port

• Maximum Capacity: Up to 10TB (Single HDD)

• Advanced compression reduces storage usage significantly

🔄 Recording & Playback

• Recording Resolutions:
  8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / VGA

• Multi-channel synchronous playback

• Video encryption supported

🌐 Network & Connectivity

• Network Interface: 1 × RJ45 (10/100 Mbps)

• Supported Protocols:
  TCP/IP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, IPv4/IPv6

• ONVIF Profile S/T supported

• Remote access via mobile app, CMS & web browser

🔌 External Interfaces

• USB Ports: 2 × USB 2.0

• Audio Output: 1 × RCA

• USB backup & mouse support

⚙️ Smart Features

• Motion Detection

• Event Alerts & Notifications

• Video Content Analysis (VCA) support

• Centralized IP camera management

• Real-time monitoring

⚡ Power

• Power Supply: DC 12V

• Power Consumption: ≤10W (without HDD)

🛡 Build & Design

• Compact 1U Desktop Design

• Designed for 24×7 continuous operation

• Operating Temperature: -10°C to +55°C

• Humidity: 10%–90% RH

📐 Physical Specifications

• Dimensions: Approx. 255 × 231 × 44 mm

• Weight: ~0.8–0.9 kg (without HDD)

📦 Applications

✔ Offices & Commercial Buildings
✔ Warehouses & Factories
✔ Retail Chains & Showrooms
✔ Schools & Hospitals
✔ Medium to Large CCTV Projects

💡 Why Choose I-HNVR-1120?

• Supports up to 20 cameras for scalable setups

• High bandwidth ensures smooth performance

• Efficient storage with advanced compression

• Easy installation and user-friendly interface

• Reliable Honeywell surveillance solution
