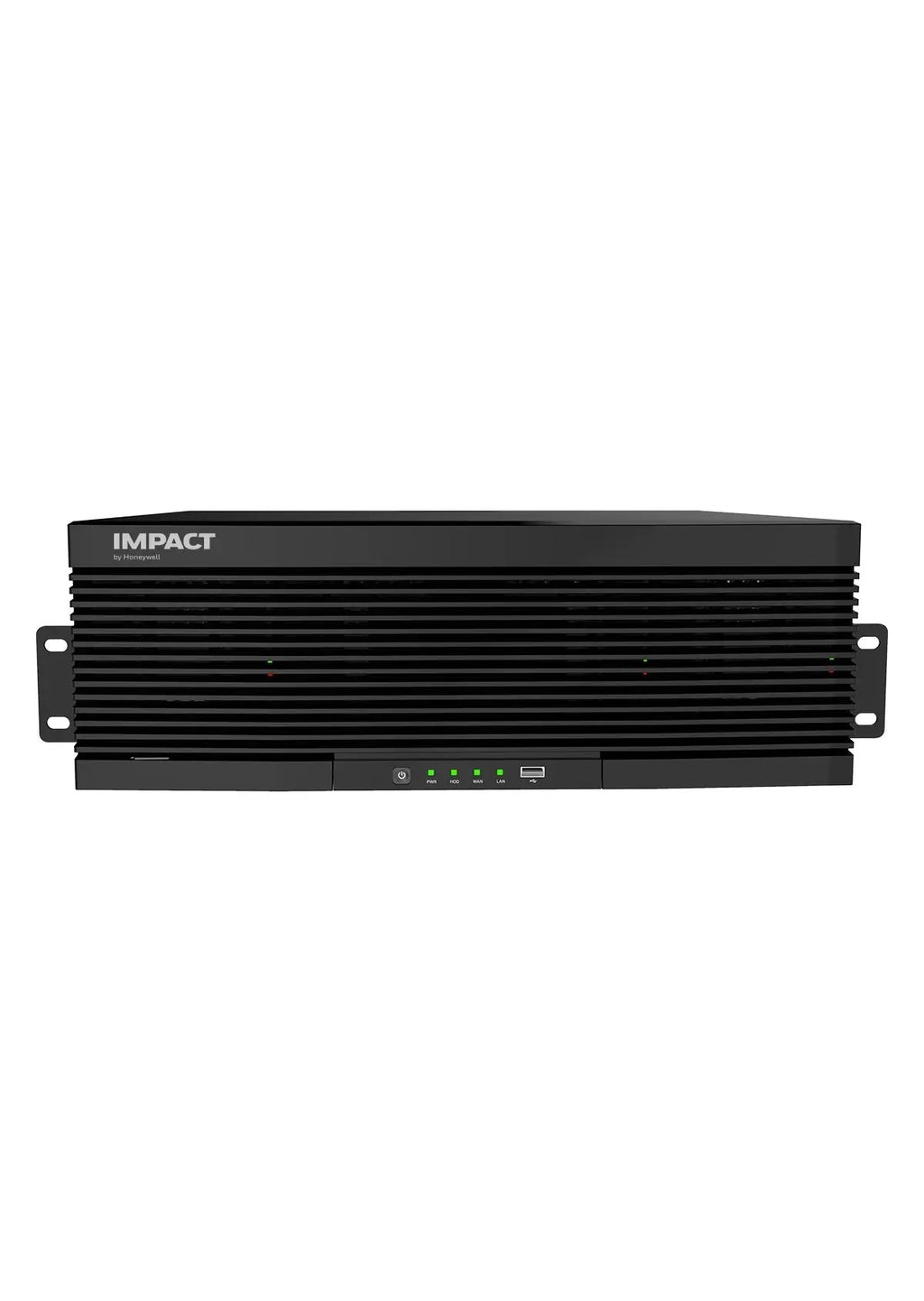

Honeywell 256 Channel 16-SATA 4K NVR | I-HPNVR-16256

The Honeywell I-HPNVR-16256 is a high-end 256-channel Network Video Recorder (NVR) designed for mega surveillance and mission-critical projects. With ultra-high bandwidth, 16 SATA HDD support, advanced RAID configurations, and AI analytics, it delivers unmatched performance for large-scale deployments.

🔑 Key Features

✔ 256 Channel IP Camera Support
✔ Supports up to 12MP Resolution Recording
✔ Ultra-High Bandwidth: 1024 Mbps (Incoming) / 800 Mbps (Outgoing)
✔ 16 SATA HDD Support (Up to 18TB Each – 288TB Total)
✔ Advanced H+265 / H.265 / H.264 Compression
✔ 4 × HDMI Output (Multi-Screen Monitoring)
✔ Dual Gigabit LAN Ports (2 × RJ45)
✔ Advanced RAID Support (0 / 1 / 5 / 6 / 10)
✔ Multiple AI Analytics Support
✔ HDD Hot Swappable Support

🎯 Video & Performance

• Video Input: Up to 256 Channels

• Maximum Resolution: Up to 12MP

• ✅ Incoming Bandwidth: 1024 Mbps

• ✅ Outgoing Bandwidth: 800 Mbps

• Designed for ultra-large camera networks

• Smooth real-time monitoring and playback

🖥 Video Output

• 4 × HDMI Output (Up to 4K Resolution)

• VGA Output: Supported

• Multi-monitor control room setup

• Screen Split Modes:
  1 / 4 / 8 / 9 / 16 / 25 / 36 / 64 / 128 / 256

💾 Storage

• HDD Interface: 16 × SATA Ports

• Capacity: Up to 18TB per HDD (Total up to 288TB)

• RAID Support:
  RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10

• HDD Hot Swap: Supported

• Additional Support:
  ✔ NAS Storage
  ✔ FTP Backup
  ✔ Cloud Storage

• Smart compression reduces storage usage

🔄 Recording & Playback

• Recording Resolutions:
  12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P

• Multi-channel synchronous playback

• Smart event-based playback

• Video encryption supported

🌐 Network & Connectivity

• Ethernet Port: 2 × RJ45 (10/100/1000 Mbps)

• Supported Protocols:
  TCP/IP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, IPv4/IPv6

• ONVIF compatible (third-party cameras supported)

• Remote access via mobile app, CMS & web browser

🔌 External Interfaces

• Audio: 1 In / 1 Out

• Alarm: 16 In / 4 Out

• USB Ports: USB 2.0 + USB 3.0

• RS-485 supported

⚙️ AI & Smart Features

• Face Detection & Recognition

• Human & Vehicle Detection

• Intrusion Detection & Line Crossing

• Heat Map & Crowd Analysis

• Smart Motion Detection

• Intelligent Video Analytics

⚡ Power

• Power Supply: AC 100–240V

• Designed for 24×7 continuous operation

🛡 Build & Design

• Rack Mount Enterprise Design (Data Center Grade)

• Industrial-grade hardware

• Ideal for mission-critical infrastructure

📦 Applications

✔ Smart City & Safe City Projects
✔ Airports & Metro Infrastructure
✔ Large Industrial Plants
✔ Data Centers & Warehouses
✔ Government & Defense Surveillance

💡 Why Choose I-HPNVR-16256?

• Massive 256 channel capacity

• Ultra-high 1024 Mbps throughput

• Huge storage with 16 HDD + RAID support

• Advanced AI-powered surveillance

• Built for enterprise & mega projects
