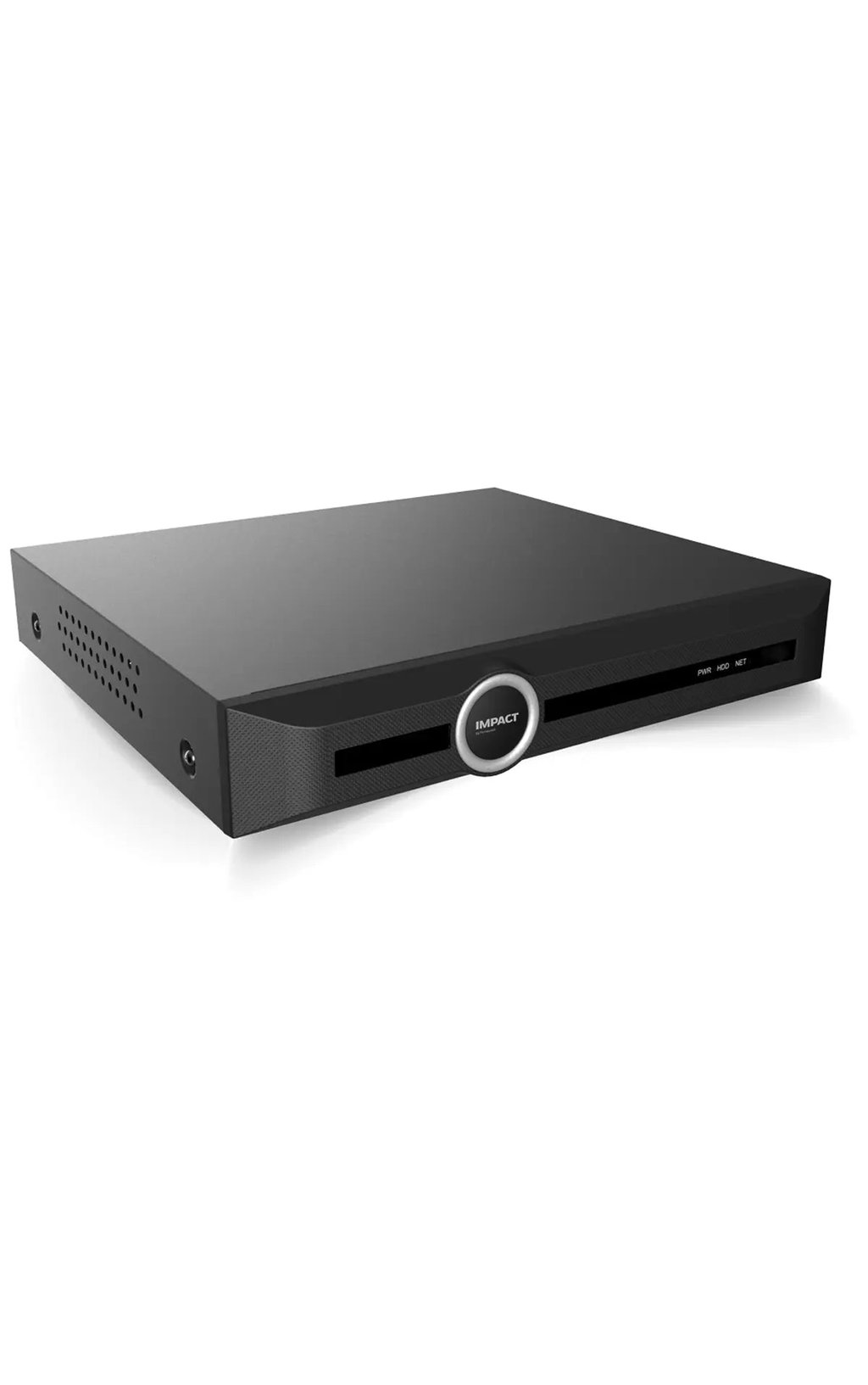

Honeywell 40 Channel 2-SATA 4K NVR | I-HNVR-1240

The Honeywell I-HNVR-1240 is a high-performance 40-channel Network Video Recorder (NVR) designed for large-scale CCTV deployments. With support for up to 12MP cameras, dual HDD storage, and high bandwidth capacity, it delivers powerful recording, seamless playback, and centralized monitoring for enterprise security systems.

🔑 Key Features

✔ 40 Channel IP Camera Support
✔ Supports up to 12MP Resolution Recording
✔ Dual SATA HDD Support (2 HDD)
✔ Advanced IH+265 / H.265 / H.264 Compression
✔ 4K HDMI Output + VGA Output
✔ Dual Gigabit LAN Ports (2 × RJ45)
✔ ONVIF Compatible (Third-party camera support)

🎯 Video & Performance

• Video Input: Up to 40 Channels

• Maximum Resolution: Up to 12MP

• Incoming Bandwidth: Up to 320 Mbps

• Outgoing Bandwidth: Up to 320 Mbps

• High-performance decoding for multi-camera setups (firesystems.co.in)

🖥 Video Output

• HDMI Output: Up to 4K (3840 × 2160)

• VGA Output: Up to 1080p

• Simultaneous HDMI & VGA display

• Screen Split Modes:
  1 / 3 / 4 / 6 / 8 / 9 / 10 / 13 / 16 / 20 / 25 / 36 / 40 / 64 (firesystems.co.in)

💾 Storage

• HDD Interface: 2 × SATA Ports

• Maximum Capacity: Up to 10TB per HDD (Total 20TB)

• Smart compression significantly reduces storage usage

🔄 Recording & Playback

• Recording Resolutions:
  12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / VGA

• Multi-channel synchronous playback

• Smart playback and search functionality

• Video encryption supported

🌐 Network & Connectivity

• Network Interface: 2 × RJ45 (10/100/1000 Mbps)

• Supported Protocols:
  TCP/IP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, IPv4/IPv6

• ONVIF compatible

• Remote access via mobile app, CMS & web browser

🔌 External Interfaces

• USB Ports: 1 × USB 2.0, 1 × USB 3.0

• Audio Output: 1 × RCA

• Alarm Input/Output: 16 In / 4 Out

⚙️ Smart Features

• Motion Detection

• Video Content Analysis (VCA)

• Smart Search & Playback

• Event Alerts & Notifications

• Centralized IP camera management

⚡ Power

• Power Supply: DC 12V

• Efficient power consumption for continuous operation

🛡 Build & Design

• 1U Rack Mount Design

• Industrial-grade hardware

• Designed for 24×7 operation

• Operating Temperature: -10°C to +55°C

📐 Physical Specifications

• Dimensions: Approx. 440 × 277 × 47 mm

• Weight: ~2.3 kg (without HDD) (Sharp Imaging)

📦 Applications

✔ Smart City Surveillance
✔ Large Commercial Buildings
✔ Industrial & Manufacturing Units
✔ Airports & Transport Hubs
✔ Warehouses & Logistics Parks

💡 Why Choose I-HNVR-1240?

• Supports up to 40 cameras

• High bandwidth for smooth performance

• Dual HDD for large storage needs

• Ideal for enterprise and project deployments

• Reliable Honeywell surveillance solution
